Cdo valvole,catena distr.,super./ammiss. for BMW 3 Series E46 323i (2000)

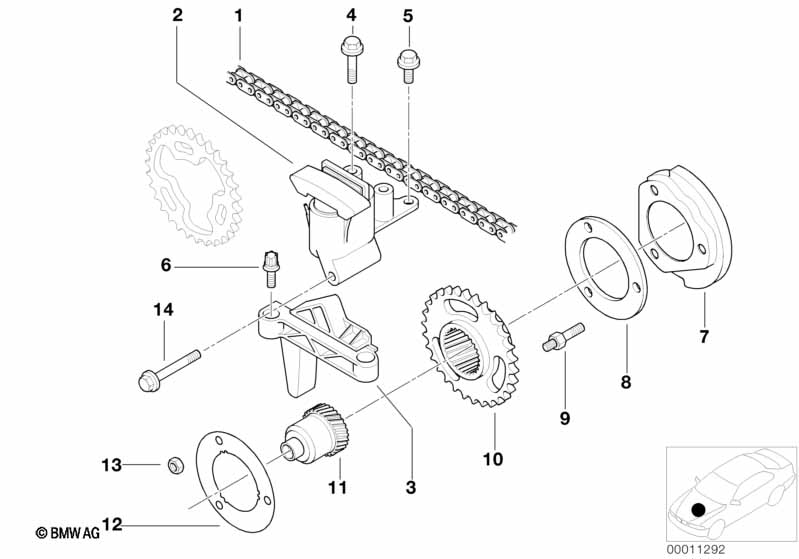

This Cdo valvole,catena distr.,super./ammiss. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Catena distribuzione | 1 | 11311432177 | $43.59 | TERMINATO | Shop at ECS Tuning | ||||
| 02 | Tendicatena | 1 | 11311738700 | $72.93 | TERMINATO | Shop at ECS Tuning | ||||
| 03 | Guida | 1 | 11311722651 | $21.22 | Shop at ECS Tuning | |||||
| 04 | Vite Esagonale con Rondella | M6X40 ZNNIV SI | 2 | 07119904525 | $1.09 | Shop at ECS Tuning | ||||
| 05 | Vite Esagonale con Rondella | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Torx vite | M6X20 | 2 | 11311736326 | $0.57 | Shop at ECS Tuning | ||||
| 07 | Ruota di trasmiss.d'impulsi | 1 | 11311437827 | $11.15 | TERMINATO | Shop at ECS Tuning | ||||
| 08 | Rosetta di arresto | 1 | 11361735908 | $10.70 | Shop at ECS Tuning | |||||
| 09 | Vite prigioniera | 3 | 11361436675 | $1.38 | Shop at ECS Tuning | |||||
| 10 | Pignone per catena | 1 | 11361744263 | $31.24 | Shop at ECS Tuning | |||||
| 11 | Albero dentato | 1 | 11361715027 | $44.13 | Shop at ECS Tuning | |||||
| 12 | Rondella ondulata | 1 | 11361436674 | $2.58 | Shop at ECS Tuning | |||||
| 13 | Dado esagonale | M6-10-PHR | 3 | 07119900910 | $0.20 | Shop at ECS Tuning | ||||
| 14 | Vite Esagonale con Rondella | M6X55-Z1 | 1 | 07119904526 | $0.56 | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
