Generatore elementi singoli 65a for BMW 3 Series E36 318is (1995)

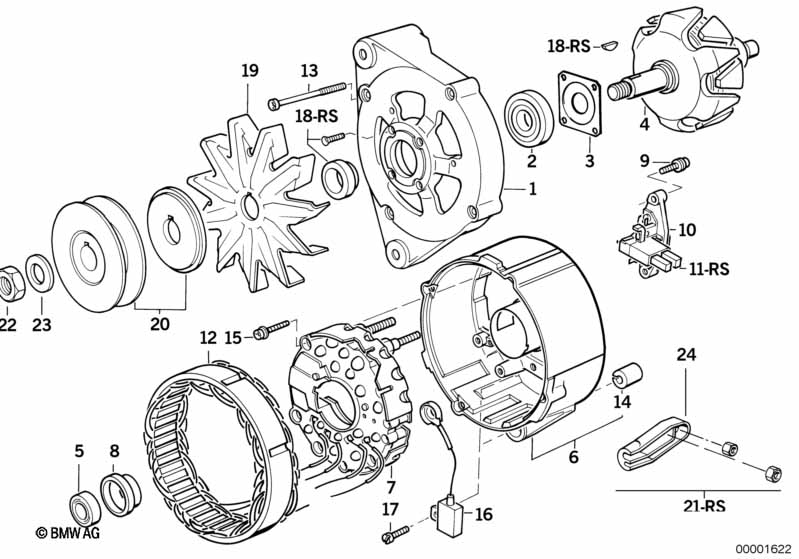

This Generatore elementi singoli 65a technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | SOLO ADATTO PER GENERATORE BOSCH Typ Nr. 0 120 488 220 BMW Nr. 12 31 1 721 912 / 915 |
|||||||||
| solo adatto per | ||||||||||
| -- | Generatore | 65A | X | 12311721912 | TERMINATO | Shop at ECS Tuning | ||||
| -- | AT-Generatore | 65A | X | 12311721915 | $348.10 | TERMINATO | Shop at ECS Tuning | |||
| 01 | Cuscinetto di comando | 1 | 12311727738 | TERMINATO | Shop at ECS Tuning | |||||
| 02 | Cuscin.a sfere scanal. | 47X17X14 | 1 | 12311722979 | $33.90 | TERMINATO | Shop at ECS Tuning | |||
| 03 | Piastra di sostegno | 1 | 12311727740 | $7.13 | TERMINATO | Shop at ECS Tuning | ||||
| 04 | Rotore | 1 | 12311727741 | TERMINATO | Shop at ECS Tuning | |||||
| 05 | Cuscin.a sfere scanal. | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 06 | Supporto anello coll. | 1 | 12311727746 | TERMINATO | Shop at ECS Tuning | |||||
| 07 | Placca di diodi | 1 | 12311727748 | TERMINATO | Shop at ECS Tuning | |||||
| 08 | Anello | 1 | 12311727751 | $2.25 | Shop at ECS Tuning | |||||
| 09 | Vite a testa cilindrica | 2 | 12311747251 | $0.58 | TERMINATO | Shop at ECS Tuning | ||||
| 10 | Regolatore | 1 | 12311726022 | $124.68 | Shop at ECS Tuning | |||||
| 11 | Corredo spazz.carbone | 1 | 12311727756 | $18.07 | Shop at ECS Tuning | |||||
| 12 | Avvolgimento ad anello | 1 | 12311727757 | $119.41 | TERMINATO | Shop at ECS Tuning | ||||
| 13 | Vite a testa cilindrica | 4 | 12311727760 | $3.53 | Shop at ECS Tuning | |||||
| 14 | Boccola | 1 | 12311727761 | $11.30 | Shop at ECS Tuning | |||||
| 15 | Vite | 6 | 12311727753 | $2.62 | Shop at ECS Tuning | |||||
| 16 | Condens.antiparasitt.generat. | BOSCH | 1 | 12311356564 | $18.88 | +rest. | Shop at ECS Tuning | |||
| 17 | Vite a testa cilindrica | AM5X10 | 1 | 07119919412 | TERMINATO | Shop at ECS Tuning | ||||
| 18 | Corredo riparazione rotore | 1 | 12311727762 | $18.57 | TERMINATO | Shop at ECS Tuning | ||||
| 19 | Ventola | 1 | 12311350199 | $14.54 | Shop at ECS Tuning | |||||
| 20 | Puleggia | 1 | 12311721776 | $56.08 | TERMINATO | Shop at ECS Tuning | ||||
| 21 | Serie di pezzi | 1 | 12311727763 | Shop at ECS Tuning | ||||||
| 22 | Dado esagonale | M16X1,5-04-ZNS | 1 | 07119901307 | $1.80 | Shop at ECS Tuning | ||||
| 23 | Rosetta elastica | B16 | 1 | 07119932162 | $0.24 | Shop at ECS Tuning | ||||
| 24 | Pezzo isolante | BOSCH | 1 | 12311727383 | $8.55 | TERMINATO | Shop at ECS Tuning | |||
| solo in collegamento con | ||||||||||
| -- | Coperchio | 1 | 12521727384 | $1.28 | TERMINATO | Shop at ECS Tuning | ||||
Note
- TERMINATO = Il ricambio è fuori produzione.
- +rest. = possibilità di restituzione della parte originale
