Sensori for BMW MINI R50 Cooper (2000)

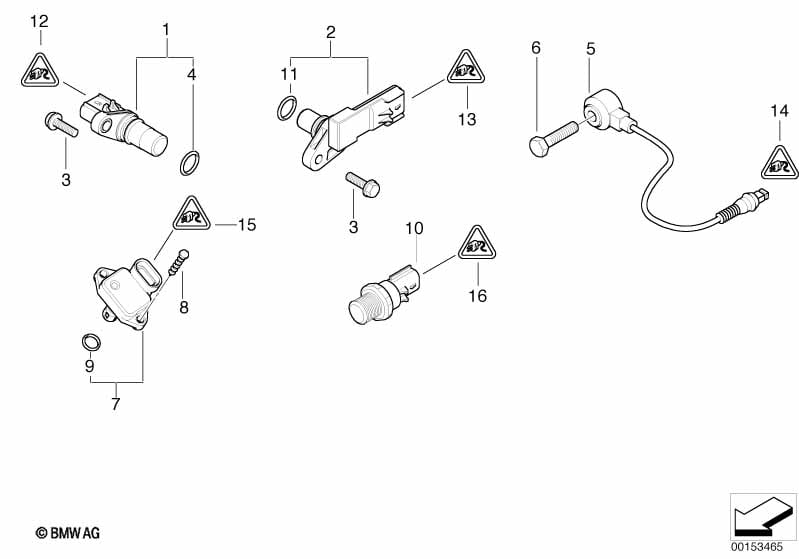

This Sensori technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Generatore d'impulso, albero a gomito | 1 | 12141485844 | $116.05 | Shop at ECS Tuning | |||||
| 02 | Trasduttore dell'albero a camme | 1 | 12141485845 | $116.05 | Shop at ECS Tuning | |||||
| 03 | Vite Esagonale con Rondella | M6X20MM | 2 | 07131487232 | $0.44 | Shop at ECS Tuning | ||||
| 04 | O-Ring | 1 | 12147514983 | $1.93 | Shop at ECS Tuning | |||||
| 05 | Sensore battiti motore | 1 | 12141487246 | $25.18 | Shop at ECS Tuning | |||||
| 06 | Vite con collare | M8X1.25X33 | 1 | 07131500914 | $0.89 | Shop at ECS Tuning | ||||
| 07 | Sensor d pressione di tubo d'aspirazione | 1 | 12140872648 | $63.98 | Shop at ECS Tuning | |||||
| 08 | Vite | 1 | 07101486700 | $0.38 | Shop at ECS Tuning | |||||
| 09 | O-Ring | 1 | 13627515272 | $2.48 | Shop at ECS Tuning | |||||
| 10 | Pressostato ad olio | 1 | 12617513068 | $12.08 | Shop at ECS Tuning | |||||
| 11 | O-Ring | 1 | 07119909399 | Shop at ECS Tuning | ||||||
| 12 | Involucro presa di corrente | 3.-POL | 1 | 12527511372 | TERMINATO | Shop at ECS Tuning | ||||
| solo in collegamento con | ||||||||||
| -- | Boccola | 0,5-1,0MM² | 3 | 12527511408 | $0.50 | Shop at ECS Tuning | ||||
| 13 | Involucro presa d corrente 3 poli nero | 1 | 12527511371 | $6.70 | Shop at ECS Tuning | |||||
| solo in collegamento con | ||||||||||
| -- | Boccola | 1,2-2,0 MM² | 2 | 12527511409 | $0.50 | Shop at ECS Tuning | ||||
| 14 | Involucro presa di corrente | 2 POL. | 1 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| solo in collegamento con | ||||||||||
| -- | Contatto boccola SLK 2,8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| -- | Cappellot.d.protezione | 2 POL. | 1 | 12521732694 | $2.10 | Shop at ECS Tuning | ||||
| 15 | Involucro presa di corrente | 1 | 12527511298 | $2.53 | Shop at ECS Tuning | |||||
| solo in collegamento con | ||||||||||
| -- | Boccola | 0,35-0,5 MM² | X | 12527511411 | $0.50 | Shop at ECS Tuning | ||||
| 16 | Involucro presa di corrente 2 poli | 1 | 12527511417 | $6.68 | TERMINATO | Shop at ECS Tuning | ||||
| solo in collegamento con | ||||||||||
| -- | Boccola | 0,5-1,0MM² | 2 | 12527511408 | $0.50 | Shop at ECS Tuning | ||||
Note
- TERMINATO = Il ricambio è fuori produzione.
- SI = Service-Information (Informazione Serv.Assistenza)
