Valvola di sfiato serbatoio/tubazioni for BMW 3 Series G20 Berlina LCI 330i (2023)

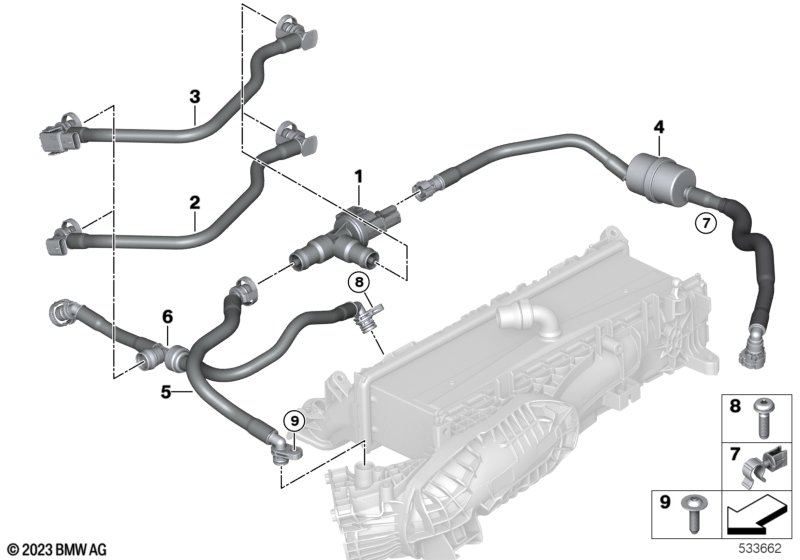

This Valvola di sfiato serbatoio/tubazioni technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Berlina LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Serbatoio aerazion.valvola | 1 | 13907643106 | Shop at ECS Tuning | ||||||
| Per veicoli con Versione per Corea |
L802A=Non |
|||||||||
| 02 | Tubazione di sfiato del serbatoio | 1 | 13909884339 | NoS | Shop at ECS Tuning | |||||
| 03 | Tubaz.sfiato serbat.con sensore press. | 1 | 13909884340 | NoS | Shop at ECS Tuning | |||||
| 04 | Tubazione di sfiato del serbatoio | 1 | 13909884334 | NoS | Shop at ECS Tuning | |||||
| 05 | Tubazione di sfiato del serbatoio | 1 | 13909884337 | NoS | Shop at ECS Tuning | |||||
| 06 | Pompa aspirante-premente | 1 | 13909884344 | NoS | Shop at ECS Tuning | |||||
| 07 | Sostegno di tubo | D12,5 | 1 | 17117856726 | Shop at ECS Tuning | |||||
| 08 | Vite | 6X20 | 1 | 07129907489 | Shop at ECS Tuning | |||||
| 09 | Vite testa cil. | ST5X17-ZNS3 | 1 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
Note
- NoS = No Stock (Componente non pres. nel magazzino cent.)
