Pompa ad alta pressione/Condotti for BMW 3 Series G20 Berlina LCI 330i (2023)

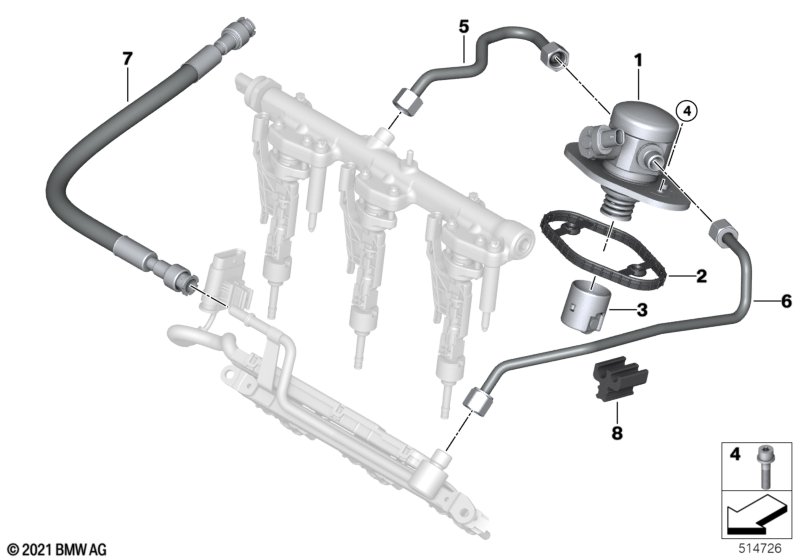

This Pompa ad alta pressione/Condotti technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Berlina LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pompa ad alta pressione | 1 | 13517934496 | Shop at ECS Tuning | ||||||
| solo in collegamento con | ||||||||||
| -- | Tubazione ad alta pressione | 1 | 13538489570 | Shop at ECS Tuning | ||||||
| -- | Vite Isa con rondella | M6X25-U1 | 1 | 13517632572 | Shop at ECS Tuning | |||||
| -- | Profilo guarnizione | 1 | 11129847198 | Shop at ECS Tuning | ||||||
| 02 | Profilo guarnizione | 1 | 11129847198 | Shop at ECS Tuning | ||||||
| 03 | Punteria | 1 | 11328629250 | Shop at ECS Tuning | ||||||
| solo in collegamento con | ||||||||||
| -- | Tubazione ad alta pressione | 1 | 13538489570 | Shop at ECS Tuning | ||||||
| -- | Vite Isa con rondella | M6X25-U1 | 1 | 13517632572 | Shop at ECS Tuning | |||||
| -- | Profilo guarnizione | 1 | 11129847198 | Shop at ECS Tuning | ||||||
| 04 | Vite Isa con rondella | M6X25-U1 | 2 | 13517632572 | Shop at ECS Tuning | |||||
| 05 | Tubazione ad alta pressione | 1 | 13538489570 | Shop at ECS Tuning | ||||||
| 06 | Tubo di collegamento | 1 | 13539456688 | Shop at ECS Tuning | ||||||
| 07 | Tubo flessibile carburante | 1 | 13538685979 | Shop at ECS Tuning | ||||||
| 08 | Gomma smorzante | 1 | 13539469318 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Berlina LCI 330i Pompa ad alta pressione/Condotti?
- This technical diagram illustrates the Pompa ad alta pressione/Condotti within the Preparazione carburante group for the 3 Series G20 Berlina LCI 330i produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Pompa ad alta pressione (Part #13517934496).
- Which models use the hardware listed in this Pompa ad alta pressione/Condotti?
- The hardware and components featured in the Pompa ad alta pressione/Condotti are specific to the 3 Series G20 Berlina LCI 330i produced during 2023. These technical specifications ensure that parts like the Pompa ad alta pressione (13517934496) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pompa ad alta pressione/Condotti assembly?
- Each item in the Pompa ad alta pressione/Condotti corresponds to the numbered list below the illustration. For the 3 Series G20 Berlina LCI 330i, you can identify the Pompa ad alta pressione by locating its position on the schematic, which then links to the official BMW part number 13517934496 for the Preparazione carburante section.
