Rubinetto carburante-gemma for BMW R45-R65LS..78-85 R65LS (1983)

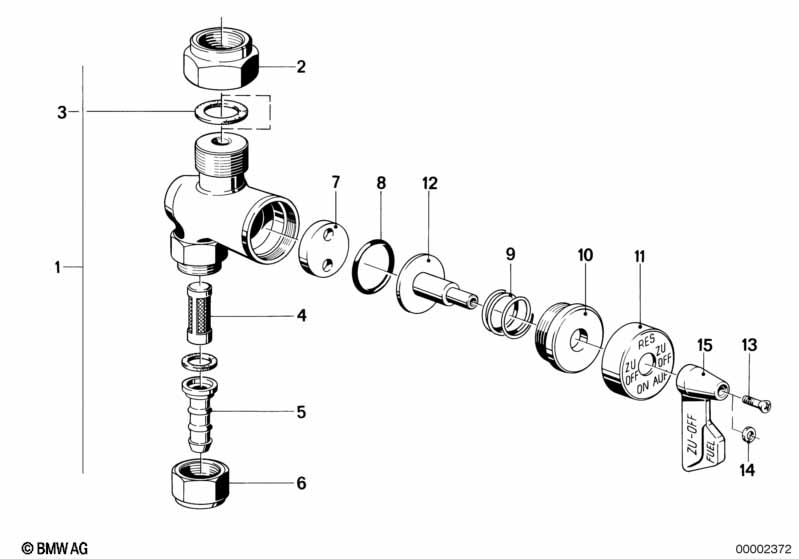

This Rubinetto carburante-gemma technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Germa | |||||||||
| 02 | Dado a risvolto | 1 | 16121233363 | $6.92 | Shop at ECS Tuning | |||||
| 03 | Anello di tenuta | A13.5X18 | 1 | 16121240060 | $0.83 | Shop at ECS Tuning | ||||
| 04 | Filtro carburante | 1 | 16121240516 | $8.35 | Shop at ECS Tuning | |||||
| 05 | Raccordo | 1 | 16121240517 | $6.92 | TERMINATO | Shop at ECS Tuning | ||||
| 06 | Dado a risvolto | 1 | 16121233369 | $4.83 | Shop at ECS Tuning | |||||
| 07 | Guarnizione | 1 | 16121240512 | $12.64 | Shop at ECS Tuning | |||||
| 08 | O-Ring | 16X2MM | 2 | 11428604872 | Shop at ECS Tuning | |||||
| 08 | O-Ring | 16X2MM | 2 | 11428604872 | Shop at ECS Tuning | |||||
| 09 | Molla di compressione | 1 | 16121240514 | $2.62 | TERMINATO | Shop at ECS Tuning | ||||
| 10 | Cappuccio | 1 | 16121240515 | TERMINATO | Shop at ECS Tuning | |||||
| 11 | Cappuccio | 1 | 16121240518 | $4.39 | TERMINATO | Shop at ECS Tuning | ||||
| 12 | Perno leva del cambio | 1 | 16121240988 | $6.96 | TERMINATO | Shop at ECS Tuning | ||||
| 13 | Vite | 1 | 16121240946 | TERMINATO | Shop at ECS Tuning | |||||
| 14 | Rosetta dentata | V3,2 | 1 | 07119936044 | $0.12 | TERMINATO | Shop at ECS Tuning | |||
| 15 | Leva di comando | 1 | 16122301596 | TERMINATO | Shop at ECS Tuning | |||||
Note
- TERMINATO = Il ricambio è fuori produzione.
