Parti di attacco serbatoio carburante for BMW R45-R65LS..78-85 R65LS (1983)

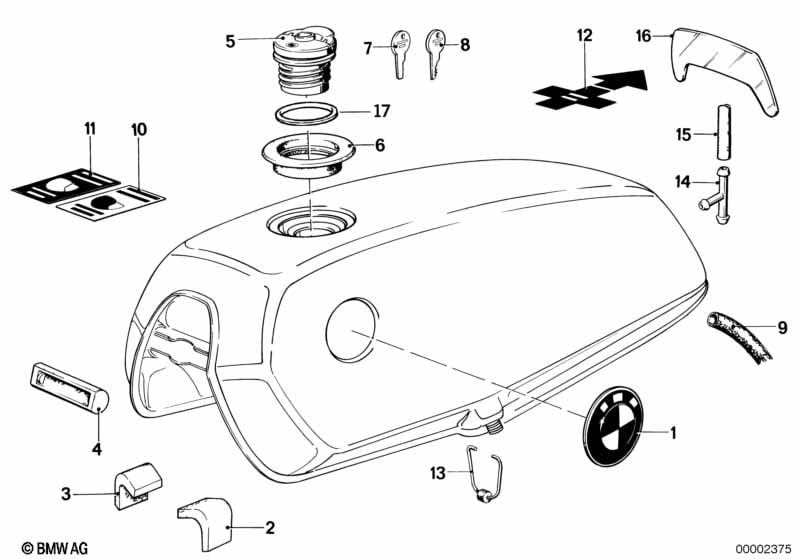

This Parti di attacco serbatoio carburante technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Placchetta | D=70MM | 2 | 46637686746 | $12.79 | Shop at ECS Tuning | ||||
| 02 | Appoggio sinistra | 1 | 16111237552 | $17.01 | Shop at ECS Tuning | |||||
| 03 | Appoggio destra | 1 | 16111237553 | $17.01 | Shop at ECS Tuning | |||||
| 04 | Suppporto di gomma | 1 | 16111236124 | $5.34 | Shop at ECS Tuning | |||||
| 05 | Tappo del serbatoio con cil.di chiusura | 1 | 51252307168 | $205.15 | TERMINATO, +rest. | Shop at ECS Tuning | ||||
| 05 | Tappo del serbatoio | 1 | 51252307125 | $168.44 | TERMINATO, +rest. | Shop at ECS Tuning | ||||
| solo in collegamento con | ||||||||||
| -- | Cilindro d.chiusur.tappo serbat.con code | 1 | 51252307173 | +rest. | Shop at ECS Tuning | |||||
| 06 | Anello | 1 | 16112307360 | $3.65 | Shop at ECS Tuning | |||||
| 09 | Tubo flessibile | 1330MM | 1 | 16132307010 | $26.14 | Shop at ECS Tuning | ||||
| 10 | Targhetta di segnalazione | HELM | 1 | 51141453617 | $5.34 | Shop at ECS Tuning | ||||
| 13 | Staffa di ritegno | 1 | 16111240159 | $20.96 | Shop at ECS Tuning | |||||
| 15 | Tubo flessibile carburante Meterware | 6X11 | X | 13111338115 | $13.12 | Shop at ECS Tuning | ||||
| 16 | Pellicola | 1 | 16111453404 | TERMINATO | Shop at ECS Tuning | |||||
| 17 | Guarnizione | 1 | 51251453148 | $4.29 | Shop at ECS Tuning | |||||
Note
- TERMINATO = Il ricambio è fuori produzione.
- +rest. = possibilità di restituzione della parte originale
