Presilenziatore for BMW 7 Series E23 733i (1979)

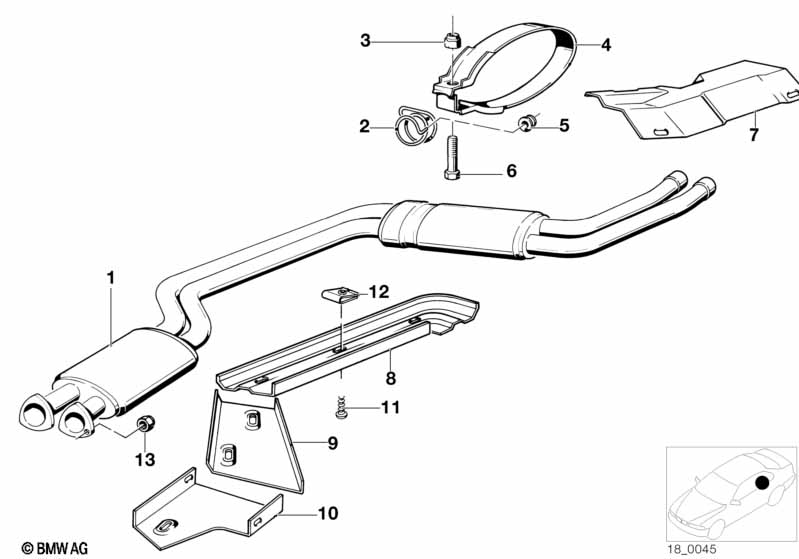

This Presilenziatore technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Presilenziatore | 1 | 09/1979 | 18121246332 | $496.23 | TERMINATO | Shop at ECS Tuning | |||
| 02 | Molla | 1 | 09/1979 | 18211246857 | $16.07 | TERMINATO | Shop at ECS Tuning | |||
| 03 | Dado con collare | M8-8-SC-ZNNIV | 1 | 09/1979 | 07119906089 | $0.32 | Shop at ECS Tuning | |||
| 04 | Fascetta | 1 | 09/1979 | 18211246313 | $5.34 | Shop at ECS Tuning | ||||
| 05 | Bocchetta | 1 | 09/1979 | 18211246315 | $0.84 | TERMINATO | Shop at ECS Tuning | |||
| 06 | Vite esagonale | M8X45 | 1 | 09/1979 | 07119913681 | $0.54 | Shop at ECS Tuning | |||
| 07 | Lamiera isolante | 1 | 09/1979 | 18211246612 | $20.31 | TERMINATO | Shop at ECS Tuning | |||
| 08 | Lamiera antincendio | 1 | 09/1979 | 18211246573 | $28.89 | TERMINATO | Shop at ECS Tuning | |||
| 09 | Lamiera antincendio | 1 | 09/1979 | 18211246572 | TERMINATO | Shop at ECS Tuning | ||||
| 10 | Lamiera antincendio | 1 | 09/1979 | 18211246597 | TERMINATO | Shop at ECS Tuning | ||||
| 11 | Vite esagonale per lamiera | ST6,3X16-R-U2-Z | X | 09/1979 | 07119905017 | $0.38 | Shop at ECS Tuning | |||
| 12 | Dado per lamiera | ST6,3-10 | X | 09/1979 | 07129901672 | $0.35 | Shop at ECS Tuning | |||
| 13 | Dado esagonale con flangia | M8 | 6 | 09/1979 | 18307620549 | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Presilenziatore?
- This technical diagram illustrates the Presilenziatore within the impianto gas di scarico group for the 7 Series E23 733i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Presilenziatore (Part #18121246332).
- Which models use the hardware listed in this Presilenziatore?
- The hardware and components featured in the Presilenziatore are specific to the 7 Series E23 733i produced during 1979. These technical specifications ensure that parts like the Presilenziatore (18121246332) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Presilenziatore assembly?
- Each item in the Presilenziatore corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Presilenziatore by locating its position on the schematic, which then links to the official BMW part number 18121246332 for the impianto gas di scarico section.
