Silenziatore terminale for BMW 3 Series E46 318Ci

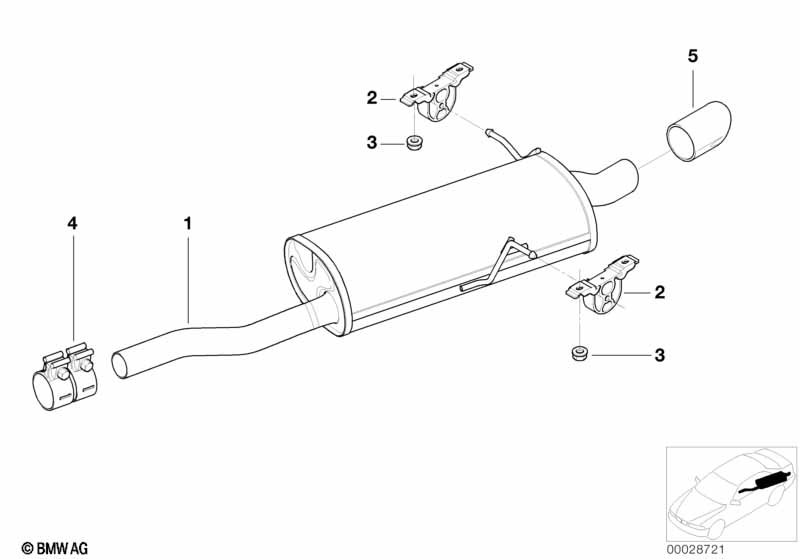

This Silenziatore terminale technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Silenziatore terminale | 1 | 18121712927 | $393.94 | Shop at ECS Tuning | |||||
| 02 | Suppporto di gomma | 1 | 18207503246 | $21.41 | Shop at ECS Tuning | |||||
| 03 | Dado a flangia | M8 | 4 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Boccola a tache | D=60 X 70MM | 1 | 18307560777 | $34.61 | Shop at ECS Tuning | ||||
| 05 | Mascherina terminale scarico cromata | 1 | 18107500197 | +rest. | Shop at ECS Tuning | |||||
| Per veicoli con Chrome Line exterieur |
S346A=Sì |
|||||||||
| 05 | Mascherina terminale scarico cromata | 1 | 18107500197 | +rest. | Shop at ECS Tuning | |||||
Note
- +rest. = possibilità di restituzione della parte originale
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318Ci Silenziatore terminale?
- This technical diagram illustrates the Silenziatore terminale within the impianto gas di scarico group for the 3 Series E46 318Ci. It provides a detailed exploded view of the components, identifying key parts such as the Silenziatore terminale (Part #18121712927).
- Which models use the hardware listed in this Silenziatore terminale?
- The hardware and components featured in the Silenziatore terminale are specific to the 3 Series E46 318Ci. These technical specifications ensure that parts like the Silenziatore terminale (18121712927) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Silenziatore terminale assembly?
- Each item in the Silenziatore terminale corresponds to the numbered list below the illustration. For the 3 Series E46 318Ci, you can identify the Silenziatore terminale by locating its position on the schematic, which then links to the official BMW part number 18121712927 for the impianto gas di scarico section.
