Frizione/volano bi-massa for BMW 5 Series E60 550i

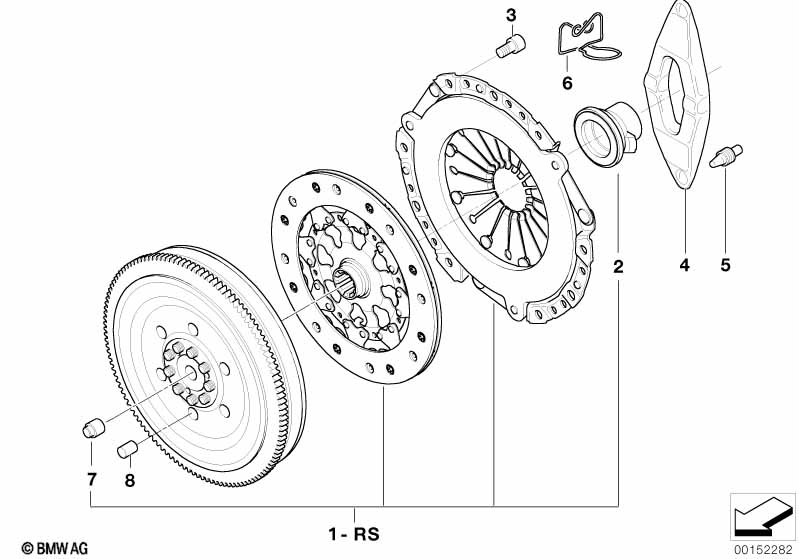

This Frizione/volano bi-massa technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 550i. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Volano bimassa con frizione | 1 | 06/2006 | 21207562945 | $1285.33 | Shop at ECS Tuning | ||||
| 01 | Volano Bi-massa | 1 | 06/2006 | 03/2007 | 21207566084 | $1588.27 | Shop at ECS Tuning | |||
| solo in collegamento con | ||||||||||
| -- | Serie frizione | D=240MM | 1 | 06/2006 | 03/2007 | 21207573789 | $407.69 | Shop at ECS Tuning | ||
| Per veicoli con Cambio meccanico sequenziale |
S206A=Sì |
|||||||||
| 01 | Volano Bi-massa | 1 | 03/2007 | 21207566084 | $1588.27 | Shop at ECS Tuning | ||||
| solo in collegamento con | ||||||||||
| -- | Serie frizione | D=240MM | 1 | 03/2007 | 21207573789 | $407.69 | Shop at ECS Tuning | |||
| 02 | Leva d.disinnesto | 1 | 03/2007 | 21517526105 | $75.34 | Shop at ECS Tuning | ||||
| Attenzione! Vedasi coppia di serragio! |
||||||||||
| 03 | Vite a testa cilindrica | M8X16-ZNS3 MK | 6 | 03/2007 | 07119906045 | $0.56 | Shop at ECS Tuning | |||
| 04 | Leva d.distacco | 1 | 03/2007 | 21511223302 | $17.40 | Shop at ECS Tuning | ||||
| 05 | Bullone a testa sferica | H=20MM | 1 | 03/2007 | 21511223328 | $1.17 | Shop at ECS Tuning | |||
| 06 | Staffa p attacco molla | 1 | 03/2007 | 21517570284 | $4.50 | Shop at ECS Tuning | ||||
| 07 | Cuscinett.a rull.cilind. | 15X24X26 | 1 | 03/2007 | 21207536792 | $18.92 | Shop at ECS Tuning | |||
| 08 | Spina di registr. | 5X14 | 1 | 03/2007 | 11217500307 | $2.47 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 550i Frizione/volano bi-massa?
- This technical diagram illustrates the Frizione/volano bi-massa within the Frizione group for the 5 Series E60 550i. It provides a detailed exploded view of the components, identifying key parts such as the Volano bimassa con frizione (Part #21207562945).
- Which models use the hardware listed in this Frizione/volano bi-massa?
- The hardware and components featured in the Frizione/volano bi-massa are specific to the 5 Series E60 550i. These technical specifications ensure that parts like the Volano bimassa con frizione (21207562945) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Frizione/volano bi-massa assembly?
- Each item in the Frizione/volano bi-massa corresponds to the numbered list below the illustration. For the 5 Series E60 550i, you can identify the Volano bimassa con frizione by locating its position on the schematic, which then links to the official BMW part number 21207562945 for the Frizione section.
