Getrag 260/6 parti di comando interno for BMW 7 Series E23 735i (1982)

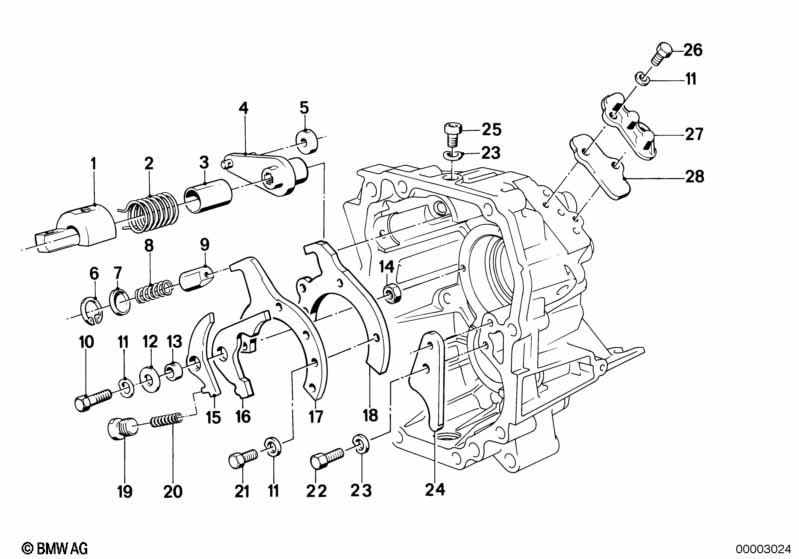

This Getrag 260/6 parti di comando interno technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Appoggio | 1 | 23311224140 | $31.28 | Shop at ECS Tuning | |||||
| 02 | Molla girevole | D=2,8 | 1 | 23311224128 | $3.68 | TERMINATO | Shop at ECS Tuning | |||
| 03 | Boccola | 25X22X38,5 | 1 | 23311224126 | $3.27 | TERMINATO | Shop at ECS Tuning | |||
| 04 | Brac.selett.oscill. | 1 | 23311224123 | $145.90 | TERMINATO | Shop at ECS Tuning | ||||
| 05 | Rullino | 1 | 23317539087 | $10.62 | Shop at ECS Tuning | |||||
| 06 | Anello di sicurezza | 20X1 | 1 | 07119934624 | $1.78 | Shop at ECS Tuning | ||||
| 07 | Cappellotto di copertura | 1 | 23127527439 | $4.40 | Shop at ECS Tuning | |||||
| 08 | Molla di compressione | 1 | 23311224215 | $2.68 | Shop at ECS Tuning | |||||
| 09 | Bullone di bloccaggio | 1 | 23311224130 | $11.96 | Shop at ECS Tuning | |||||
| 10 | Vite esagonale | M6X18 | 1 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 11 | Rosetta elastica nera | B6-ZN | 9 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Rondella distanziatrice | 21X6,5X2 | 1 | 23221224085 | $0.16 | TERMINATO | Shop at ECS Tuning | |||
| 13 | Anello | 1 | 23221224396 | $1.45 | TERMINATO | Shop at ECS Tuning | ||||
| 14 | Dado esagonale | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Leva | 1 | 23311224156 | $11.49 | TERMINATO | Shop at ECS Tuning | ||||
| 18 | Anello di rinforzo | 1 | 23221224155 | $24.27 | TERMINATO | Shop at ECS Tuning | ||||
| 19 | Tappo a vite | M22X1,5 | 1 | 23311224238 | $9.59 | Shop at ECS Tuning | ||||
| 20 | Molla di compressione | 1 | 23311224358 | $3.40 | TERMINATO | Shop at ECS Tuning | ||||
| 21 | Vite esagonale | M6X18 | 4 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 22 | Vite esagonale | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 23 | Rosetta elastica | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 24 | Lamiera di appoggio | 1 | 23221224116 | $10.71 | TERMINATO | Shop at ECS Tuning | ||||
| 25 | Vite a testa cilindrica | M8X15 | 1 | 23111228246 | $1.65 | Shop at ECS Tuning | ||||
| 26 | Vite esagonale | M6X18 | 2 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 27 | Cuffia di chiusura | 1 | 23311228470 | $15.70 | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
