ZF s5-16 parti di comando interno for BMW 3 Series E30 320i (1990)

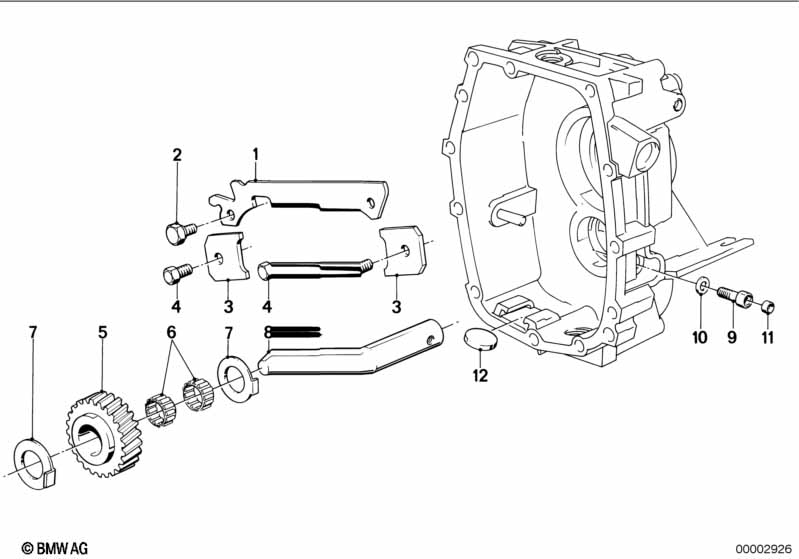

This ZF s5-16 parti di comando interno technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Nottolino | 1 | 23311224574 | $9.82 | Shop at ECS Tuning | |||||
| 02 | Vite esagonale | 3 | 23311224573 | $8.82 | TERMINATO | Shop at ECS Tuning | ||||
| 03 | Pietra di supporto | 2 | 23221224545 | $15.29 | TERMINATO | Shop at ECS Tuning | ||||
| 04 | Vite esagonale | M8X25 | 2 | 07119913525 | TERMINATO | Shop at ECS Tuning | ||||
| 05 | Ingranagg.di retromar. | Z=24 | 1 | 23221224561 | $239.94 | TERMINATO | Shop at ECS Tuning | |||
| 06 | Gabbia ad aghi | 20X26X13 | 2 | 23221224565 | $16.52 | Shop at ECS Tuning | ||||
| 07 | Rosetta di arresto | 2 | 23221224641 | TERMINATO | Shop at ECS Tuning | |||||
| 08 | Bullone | 1 | 23221224562 | $32.64 | TERMINATO | Shop at ECS Tuning | ||||
| 09 | Vite a testa cilindrica | M8X20-8.8 ZN | 1 | 07119919969 | $0.78 | Shop at ECS Tuning | ||||
| 10 | Anello di tenuta senza amiante | 18X8,7X1 | 1 | 23221224564 | $4.25 | TERMINATO | Shop at ECS Tuning | |||
| 11 | Coperchio di chiusura | 1 | 23221224563 | TERMINATO | Shop at ECS Tuning | |||||
| 12 | Magnete | 1 | 23111224503 | $7.86 | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i ZF s5-16 parti di comando interno?
- This technical diagram illustrates the ZF s5-16 parti di comando interno within the cambio meccanico group for the 3 Series E30 320i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Nottolino (Part #23311224574).
- Which models use the hardware listed in this ZF s5-16 parti di comando interno?
- The hardware and components featured in the ZF s5-16 parti di comando interno are specific to the 3 Series E30 320i produced during 1990. These technical specifications ensure that parts like the Nottolino (23311224574) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF s5-16 parti di comando interno assembly?
- Each item in the ZF s5-16 parti di comando interno corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Nottolino by locating its position on the schematic, which then links to the official BMW part number 23311224574 for the cambio meccanico section.
