Elementi singoli cambio GS5-65BH for BMW MINI R50 Cooper (2000)

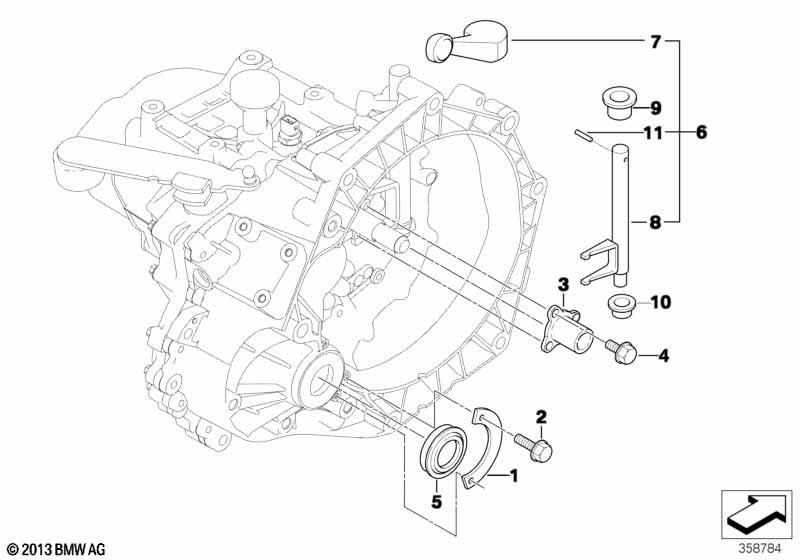

This Elementi singoli cambio GS5-65BH technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lamiera di copertura | 1 | 07/2004 | 23001502525 | $12.42 | Shop at ECS Tuning | ||||
| 02 | Vite Esagonale con Rondella | M6X16-U1-8.8 | 2 | 07/2004 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 03 | Bussola di guida con paraolio | 1 | 07/2004 | 23111044105 | $21.18 | Shop at ECS Tuning | ||||
| 04 | Vite esagonale | M5X12 | 3 | 07/2004 | 23001994497 | $0.47 | Shop at ECS Tuning | |||
| 05 | Anello di tenuta | 36X58 | 1 | 07/2004 | 23117518638 | $20.09 | Shop at ECS Tuning | |||
| 06 | Leva d.distacco | 1 | 07/2004 | 23002339480 | TERMINATO | Shop at ECS Tuning | ||||
| solo in collegamento con | ||||||||||
| -- | Boccola di supporto | 1 | 07/2004 | 23120530909 | $1.40 | Shop at ECS Tuning | ||||
| -- | Boccola di supporto | D=16MM | 1 | 07/2004 | 23110530904 | $0.72 | Shop at ECS Tuning | |||
| -- | Spina elastica | 1 | 07/2004 | 21510530910 | $1.67 | Shop at ECS Tuning | ||||
| 07 | Leva | 1 | 07/2004 | 23117515840 | Shop at ECS Tuning | |||||
| 08 | Leva d.distacco | 1 | 07/2004 | 23117515839 | Shop at ECS Tuning | |||||
| 09 | Boccola di supporto | 1 | 07/2004 | 23120530909 | $1.40 | Shop at ECS Tuning | ||||
| 10 | Boccola di supporto | D=16MM | 1 | 07/2004 | 23110530904 | $0.72 | Shop at ECS Tuning | |||
| 11 | Spina elastica | 1 | 07/2004 | 21510530910 | $1.67 | Shop at ECS Tuning | ||||
Note
- TERMINATO = Il ricambio è fuori produzione.
