GS5-65BH Albero motore for BMW MINI R50 Cooper (2000)

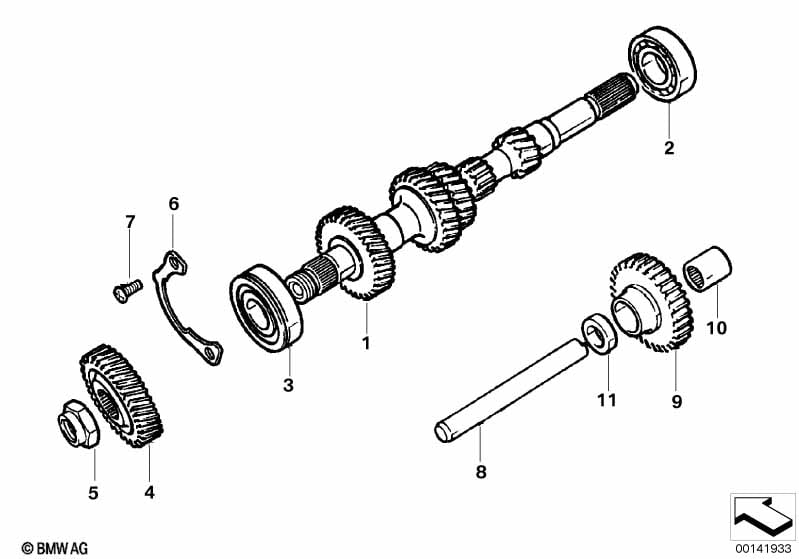

This GS5-65BH Albero motore technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Albero di entrata | 1 | 07/2004 | 23211953583 | $582.72 | TERMINATO | Shop at ECS Tuning | |||
| 02 | Cuscinetto a sfere | 52X25X15 | 1 | 07/2004 | 23211036989 | $21.03 | Shop at ECS Tuning | |||
| 03 | Cuscinetto a sfere | 1 | 07/2004 | 23210632252 | $26.63 | Shop at ECS Tuning | ||||
| 04 | Ruota dentata 5a velocita | 1 | 07/2004 | 23001591578 | $202.15 | Shop at ECS Tuning | ||||
| 05 | Dado | M20X1,5 | 1 | 07/2004 | 23201037014 | $4.00 | Shop at ECS Tuning | |||
| 06 | Anello di serraggio | 1 | 07/2004 | 23200662107 | $3.67 | Shop at ECS Tuning | ||||
| 07 | Torx vite | M8X15 | 2 | 07/2004 | 23201037068 | $1.13 | Shop at ECS Tuning | |||
| 08 | Bullone per ingranaggio della retromar. | 1 | 07/2004 | 23200662051 | Shop at ECS Tuning | |||||
| 09 | Ingranagg.di retromar. | 1 | 07/2004 | 23221956382 | $246.87 | Shop at ECS Tuning | ||||
| 10 | cuscinetto ad aghi | 1 | 07/2004 | 23220632667 | $30.08 | Shop at ECS Tuning | ||||
| 11 | Cuscinetto reggispinta | 1 | 07/2004 | 23201185859 | $2.17 | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
