ZF 3hp12 cambio/bloccaggio stazion. for BMW 1500-2000CS 1800 (1971)

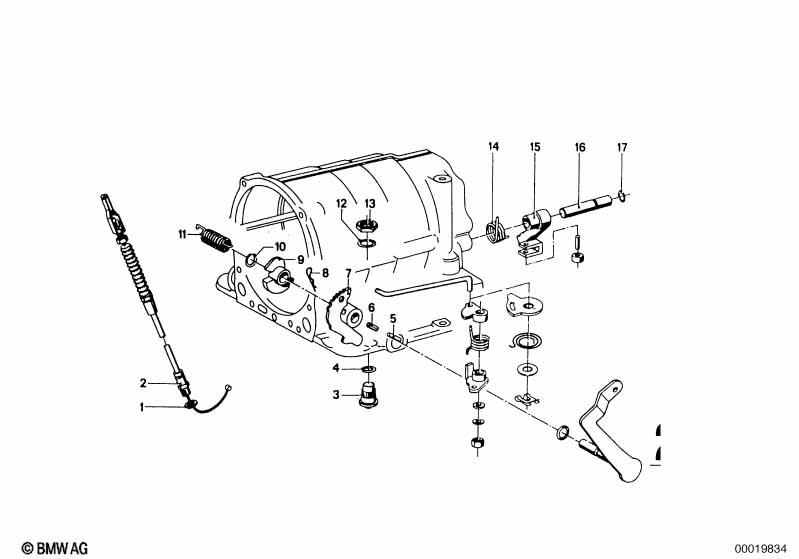

This ZF 3hp12 cambio/bloccaggio stazion. technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Schema P-R-0-A-2-1 | |||||||||
| 01 | Anello di tenuta | A10X13,5-CU | 2 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 02 | Cavo acceleratore | 1 | 24341201563 | $66.42 | Shop at ECS Tuning | |||||
| 03 | Boccola | 1 | 24231201566 | TERMINATO | Shop at ECS Tuning | |||||
| 04 | O-Ring | 9X2 | 1 | 24511200388 | TERMINATO | Shop at ECS Tuning | ||||
| 06 | Spina elastica | 6X28 | 1 | 07119941381 | $1.22 | Shop at ECS Tuning | ||||
| 07 | Nottolino | 1 | 24341201095 | TERMINATO | Shop at ECS Tuning | |||||
| 08 | Molla di serraggio | 2 | 24341200715 | TERMINATO | Shop at ECS Tuning | |||||
| 09 | Camma gas | 1 | 24341201093 | TERMINATO | Shop at ECS Tuning | |||||
| 10 | Anello elastico | 1 | 24341200713 | TERMINATO | Shop at ECS Tuning | |||||
| 11 | Molla trattiva | 1 | 24341202612 | TERMINATO | Shop at ECS Tuning | |||||
| 12 | Anello di tenuta | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Dado esagonale | 1 | 24511200387 | TERMINATO | Shop at ECS Tuning | |||||
| 14 | Molla girevole | 1 | 24341666391 | TERMINATO | Shop at ECS Tuning | |||||
| 15 | Nottolino | 1 | 24341204734 | TERMINATO | Shop at ECS Tuning | |||||
| 16 | Bullone | 1 | 24341666393 | TERMINATO | Shop at ECS Tuning | |||||
| 17 | O-Ring | 1 | 24121666395 | $1.62 | TERMINATO | Shop at ECS Tuning | ||||
Note
- TERMINATO = Il ricambio è fuori produzione.
