Fissaggio del cambio for BMW 6 Series F06 Gran Coupé LCI 640dX (2018)

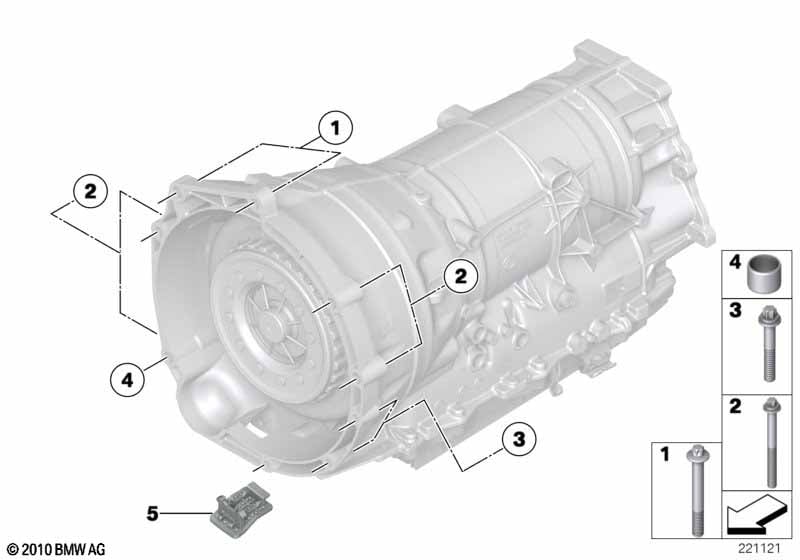

This Fissaggio del cambio technical drawing provides a detailed breakdown of the assembly for the 6 Series F06 Gran Coupé LCI 640dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torx vite | M12X75 | 2 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 02 | Torx vite | M12X100-8.8ZNS3 | 4 | 23007565047 | Shop at ECS Tuning | |||||
| 03 | ASA-Vite | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 04 | Boccola d.aggiustaggio | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Cuffia di chiusura | 1 | 24147591704 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series F06 Gran Coupé LCI 640dX Fissaggio del cambio?
- This technical diagram illustrates the Fissaggio del cambio within the Cambio automatico group for the 6 Series F06 Gran Coupé LCI 640dX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Torx vite (Part #23001222893).
- Which models use the hardware listed in this Fissaggio del cambio?
- The hardware and components featured in the Fissaggio del cambio are specific to the 6 Series F06 Gran Coupé LCI 640dX produced during 2018. These technical specifications ensure that parts like the Torx vite (23001222893) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fissaggio del cambio assembly?
- Each item in the Fissaggio del cambio corresponds to the numbered list below the illustration. For the 6 Series F06 Gran Coupé LCI 640dX, you can identify the Torx vite by locating its position on the schematic, which then links to the official BMW part number 23001222893 for the Cambio automatico section.
