Traversa/braccio trasvers/asta espansion for BMW 5 Series E34 540i (1992)

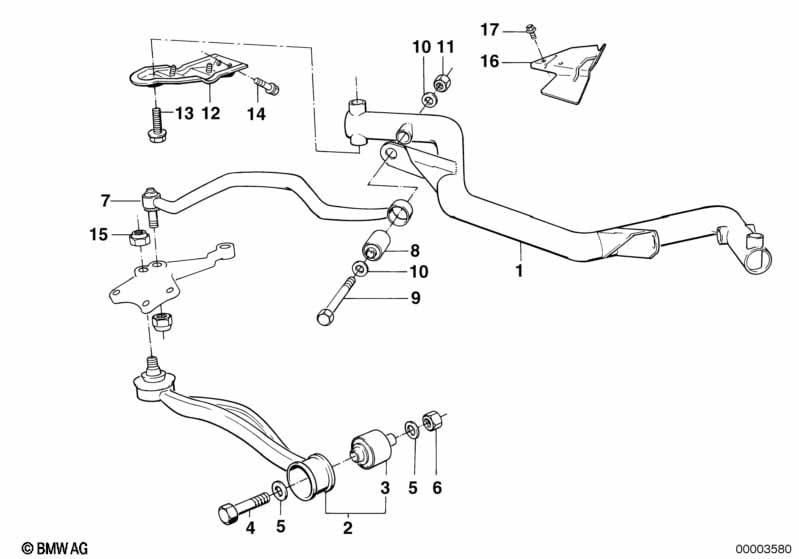

This Traversa/braccio trasvers/asta espansion technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Traversa | 1 | 31121141621 | $462.37 | Shop at ECS Tuning | |||||
| 02 | Braccio trasvers.sinistra in alluminio | 1 | 31121139987 | $252.56 | Shop at ECS Tuning | |||||
| 02 | Braccio trasvers.destra in alluminio | 1 | 31121139988 | $252.56 | Shop at ECS Tuning | |||||
| Per veicoli con Versione per Australia |
L810A=Sì |
|||||||||
| 02 | Braccio trasvers.sinistra in alluminio | 1 | 31121139987 | $252.56 | Shop at ECS Tuning | |||||
| 02 | Braccio trasvers.destra in alluminio | 1 | 31121139988 | $252.56 | Shop at ECS Tuning | |||||
| 04 | Vite esagonale | M12X1,5X77 | 2 | 07119914684 | $2.09 | Shop at ECS Tuning | ||||
| 05 | Piastra d'appoggio | 23 X 12.4 X 3MM | 4 | 31111136895 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Dado esagonale a bloccaggio automatico | M12X1,5-10-PHR | 2 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Asta d.espansi.sens.supporto d.gomma SI. | 1 | 31121141097 | $169.96 | Shop at ECS Tuning | |||||
| 07 | Asta d.espansi.sens.supporto d.gomma de. | 1 | 31121141098 | $169.96 | Shop at ECS Tuning | |||||
| 08 | Suppporto di gomma | 2 | 31121136606 | Shop at ECS Tuning | ||||||
| 09 | Vite esagonale | M14X1,5X138 | 2 | 07119900483 | $3.51 | Shop at ECS Tuning | ||||
| 10 | Piastra d'appoggio | A15 ZNS3 | 4 | 07119905829 | $0.74 | Shop at ECS Tuning | ||||
| 11 | Dado esagonale a bloccaggio automatico | M14X1,5 | 2 | 07129922745 | $1.04 | Shop at ECS Tuning | ||||
| 12 | Appoggio sinistra | 1 | 31121131639 | $23.17 | Shop at ECS Tuning | |||||
| 12 | Appoggio destra | 1 | 31121131640 | $23.17 | Shop at ECS Tuning | |||||
| 13 | vite a testa esagonale con flangia | M14X1,5X110 | 2 | 07119915400 | $8.70 | Shop at ECS Tuning | ||||
| 14 | Vite con collare | M10X27 10.9 | 4 | 31121125714 | $1.05 | TERMINATO | Shop at ECS Tuning | |||
| 15 | Dado esagonale a bloccaggio automatico | M14X1,5 05 ZNS3 | 4 | 31106769443 | $1.35 | Shop at ECS Tuning | ||||
| 16 | Lamiera isolante destra | 1 | 31141138725 | $12.32 | Shop at ECS Tuning | |||||
| 17 | Vite per lamiera | M6X14 | 2 | 31121132176 | $0.58 | Shop at ECS Tuning | ||||
Note
- TERMINATO = Il ricambio è fuori produzione.
