Cuscin. oscill./cuscinett. ruota ant. for BMW 5 Series G31 Touring LCI 520e (2022)

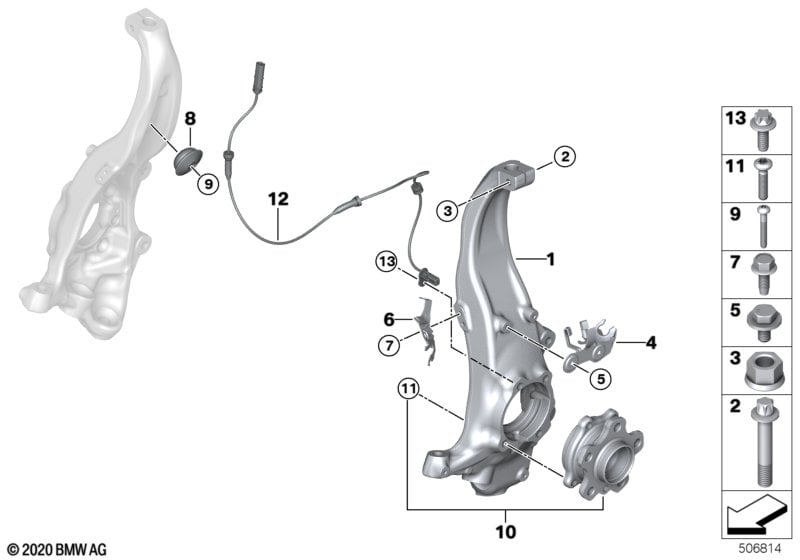

This Cuscin. oscill./cuscinett. ruota ant. technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring LCI 520e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Per veicoli con M Freno Sport e IMP.FRENANTE MAGGIORATO M, ROSSO LUCIDO |
S2NHA=Non S3M2A=Non |
|||||||||
| 01 | Sopporto girevole sinistra | 1 | 31206884381 | Shop at ECS Tuning | ||||||
| 01 | Sopporto girevole destra | 1 | 31206884382 | Shop at ECS Tuning | ||||||
| Per veicoli con M Freno Sport o IMP.FRENANTE MAGGIORATO M, ROSSO LUCIDO |
S2NHA=Sì S3M2A=Sì |
|||||||||
| 01 | Sopporto girevole sinistra | 1 | 31206884383 | Shop at ECS Tuning | ||||||
| 01 | Sopporto girevole destra | 1 | 31206884384 | Shop at ECS Tuning | ||||||
| 02 | Vite Torx | M10X59-10.9 ZNS | 2 | 31106789333 | $0.90 | Shop at ECS Tuning | ||||
| 03 | Dado combinato | M10-22H ZNS3 | 2 | 31106765451 | $1.05 | Shop at ECS Tuning | ||||
| 04 | Supporto tubo flessib.freno esterno sx | 1 | 34306861835 | Shop at ECS Tuning | ||||||
| 04 | Supporto tubo flessib.freno esterno dx | 1 | 34306861836 | Shop at ECS Tuning | ||||||
| 05 | Vite esagonale | M6X12-10.9-MK- | 4 | 34116868785 | Shop at ECS Tuning | |||||
| 06 | Supp. tubo fless. freno ant. sx | 1 | 34306879181 | Shop at ECS Tuning | ||||||
| 06 | Supp. tubo fless. freno ant. dx | 1 | 34306879182 | Shop at ECS Tuning | ||||||
| 07 | Vite autofilettante | M6X16MM | 4 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
| Per veicoli con M Freno Sport o IMP.FRENANTE MAGGIORATO M, ROSSO LUCIDO |
S2NHA=Sì S3M2A=Sì |
|||||||||
| 08 | Massa suppl. | 1 | 34106884345 | Shop at ECS Tuning | ||||||
| 09 | Vite testa con protez.d torsione | ISA M6X40 | 1 | 52207076848 | $0.67 | Shop at ECS Tuning | ||||
| 10 | Mozzo ruota con cuscinetto | 2 | 31206899176 | Shop at ECS Tuning | ||||||
| solo in collegamento con | ||||||||||
| -- | Vite a testa sferica | M12X1.25X45 | 8 | 31206872920 | Shop at ECS Tuning | |||||
| 11 | Vite a testa sferica | M12X1.25X45 | 8 | 07/2024 | 31206872920 | Shop at ECS Tuning | ||||
| 11 | Vite a testa sferica | 12X1,25X45 ZNS3 | 8 | 07148835169 | Shop at ECS Tuning | |||||
| Prendere nota di Manual di riparazione | ||||||||||
| 12 | Sensore numero di giri ruota | 2 | 34526874632 | Shop at ECS Tuning | ||||||
| 13 | Vite torx esterna automaschiante | M6X16 | 2 | 34509804151 | Shop at ECS Tuning | |||||
