Sensor di regol.profondita d'illuminaz. for BMW 3 Series F34 GT LCI 320iX (2019)

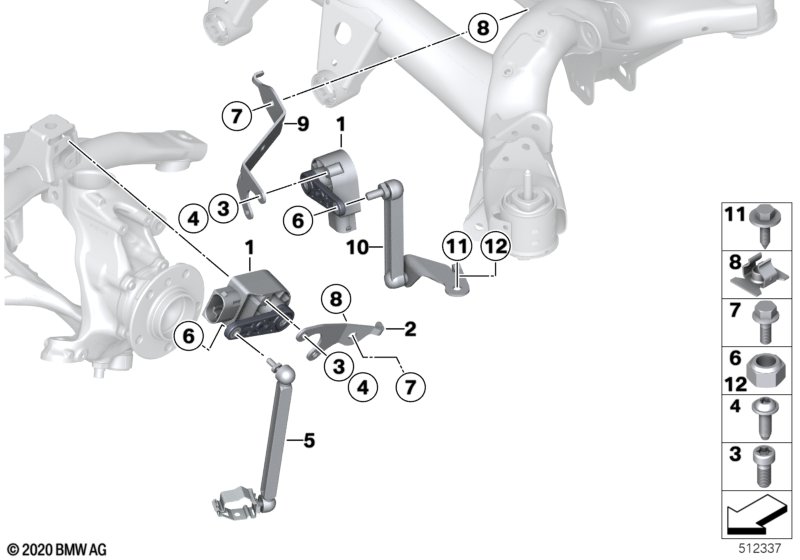

This Sensor di regol.profondita d'illuminaz. technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT LCI 320iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Per veicoli con Faro a LED adattativo |
S552A=Sì |
|||||||||
| 01 | Sensor di altezza | 2 | 03/2018 | 37146870000 | Shop at ECS Tuning | |||||
| 01 | Sensor di altezza | 2 | 37146895466 | Shop at ECS Tuning | ||||||
| 02 | Sostegno p sensor di altezza sinistra | 1 | 03/2018 | 37146797816 | Shop at ECS Tuning | |||||
| 03 | Vite ISA | M5X10 | 4 | 01/2021 | 07129904491 | Shop at ECS Tuning | ||||
| 05 | Asta di regolazione | 1 | 03/2018 | 37146852017 | Shop at ECS Tuning | |||||
| 06 | Dado esagonale a bloccaggio automatico | M6 ZNNIV SI | 2 | 03/2018 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 07 | Vite esagonale | M6X16-8.8-ZNS3 | 2 | 03/2018 | 07119904371 | $0.16 | Shop at ECS Tuning | |||
| 08 | Gabbia prestol | M6 ZNS3 | 1 | 03/2018 | 37146850307 | Shop at ECS Tuning | ||||
| 09 | Ritegno sensore altezza post. | 1 | 03/2018 | 37146888955 | Shop at ECS Tuning | |||||
| 10 | Asta di regolazione sinistra | 1 | 03/2018 | 37146867535 | Shop at ECS Tuning | |||||
| 12 | Dado esagonale a bloccaggio automatico | M6 ZNNIV SI | 1 | 03/2018 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
