Piantone d.sterzo-tube esterno/rivestim for BMW 3 Series E30 320i (1992)

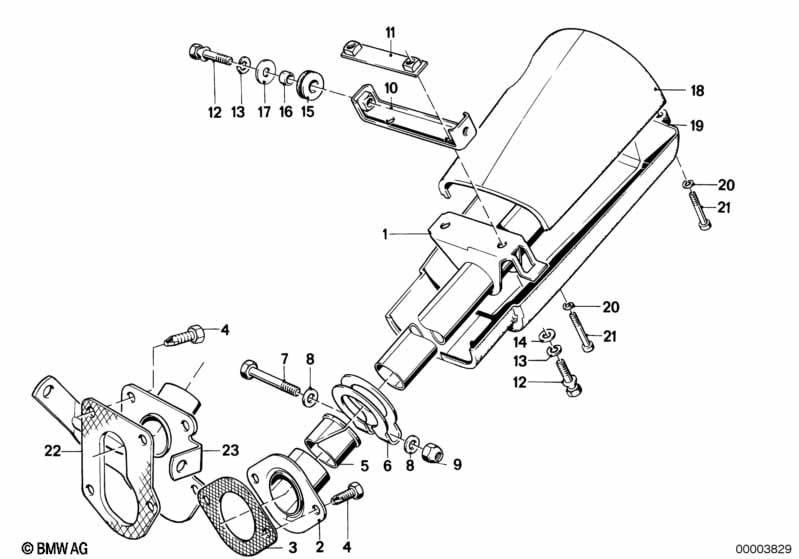

This Piantone d.sterzo-tube esterno/rivestim technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tubo per sterzo | 1 | 32311152634 | $31.50 | Shop at ECS Tuning | |||||
| 02 | Supporto | 1 | 09/1985 | 32311156224 | $9.09 | Shop at ECS Tuning | ||||
| 03 | Guarnizione | 1 | 09/1985 | 32311156226 | $31.91 | TERMINATO | Shop at ECS Tuning | |||
| 04 | Vite Esagonale con Rondella | M8X20-Z3-1 | 2 | 07119915178 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Anello intermedio | 1 | 32311154688 | $1.34 | Shop at ECS Tuning | |||||
| 06 | Fascetta | 1 | 32311115062 | $1.77 | TERMINATO | Shop at ECS Tuning | ||||
| 07 | Vite esagonale | M8X50 | 1 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 08 | Piastra d'appoggio | 8,4 | 2 | 33311108204 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Dado esagonale a bloccaggio automatico | M8-8-ZNS3 | 1 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Supporto | 2 | 32311110996 | $6.55 | Shop at ECS Tuning | |||||
| 12 | Vite di rottura | M8X20 9.8 | 4 | 32311152054 | $1.77 | Shop at ECS Tuning | ||||
| 15 | Boccola d.guida | 2 | 32311111185 | $1.73 | TERMINATO | Shop at ECS Tuning | ||||
| 16 | Tubo distanziatore | 2 | 32311111186 | $0.88 | Shop at ECS Tuning | |||||
| 18 | Rivestimento parte supuriore | 1 | 32311152204 | $65.02 | Shop at ECS Tuning | |||||
| 19 | Rivest.parte inferiore | 1 | 32311152206 | $38.07 | Shop at ECS Tuning | |||||
| 21 | Vite testa cil. | M5X35-Z3 | 4 | 07119906833 | $0.24 | Shop at ECS Tuning | ||||
| 21 | Vite autofilettante | 5X35 | 4 | 32311158355 | $0.36 | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
