Pompa di servosterzo for BMW 3 Series E46 323i (2000)

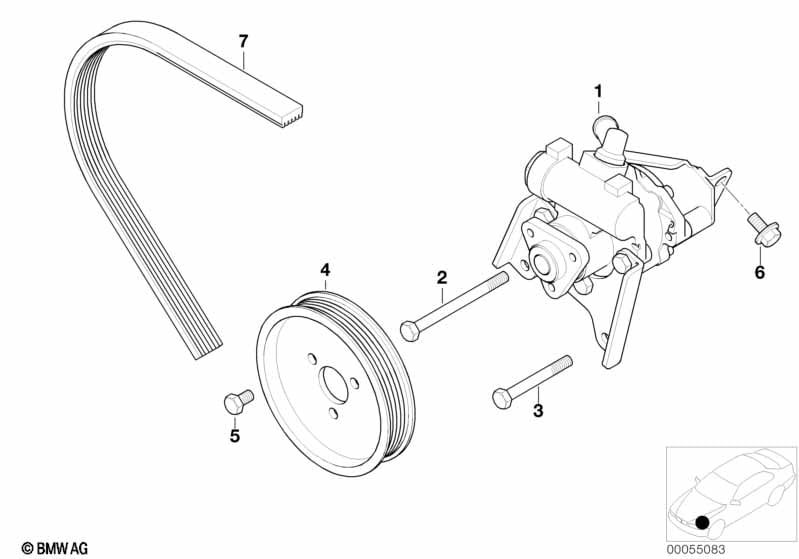

This Pompa di servosterzo technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pompa a palette | LUK LF-20 | 1 | 06/2000 | 12/2000 | 32416760036 | $445.59 | +rest. | Shop at ECS Tuning | |
| solo adatto per | ||||||||||
| -- | Tubo di compressione | X | 06/2000 | 12/2000 | 32416750156 | $114.05 | TERMINATO | Shop at ECS Tuning | ||
| -- | Tubo di compressione | X | 06/2000 | 12/2000 | 32416764726 | $203.02 | TERMINATO | Shop at ECS Tuning | ||
| -- | Tubo di compressione | X | 06/2000 | 12/2000 | 32416774215 | $236.88 | Shop at ECS Tuning | |||
| 02 | Vite Esagonale con Rondella | M8X100-U1-8.8 | 1 | 09/1999 | 07119905403 | $1.69 | Shop at ECS Tuning | |||
| 03 | Vite Esagonale con Rondella | M8X70-Z1-ZNS3 | 1 | 09/1999 | 07119906675 | Shop at ECS Tuning | ||||
| 04 | Puleggia | D=135MM | 1 | 32421740858 | $36.27 | Shop at ECS Tuning | ||||
| 05 | Vite Esagonale con Rondella | M8X14 ZNNIV SI | 3 | 07119905527 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Vite Esagonale con Rondella | M8X18-U1-8.8 | 1 | 04/2003 | 07119905529 | $0.96 | Shop at ECS Tuning | |||
| 07 | Cinghia alettata | 6PK X 1538 | 1 | 11287636379 | Shop at ECS Tuning | |||||
Note
- +rest. = possibilità di restituzione della parte originale
- TERMINATO = Il ricambio è fuori produzione.
