Corpo olio / Pezzi singoli for BMW 3 Series E46 323i (2000)

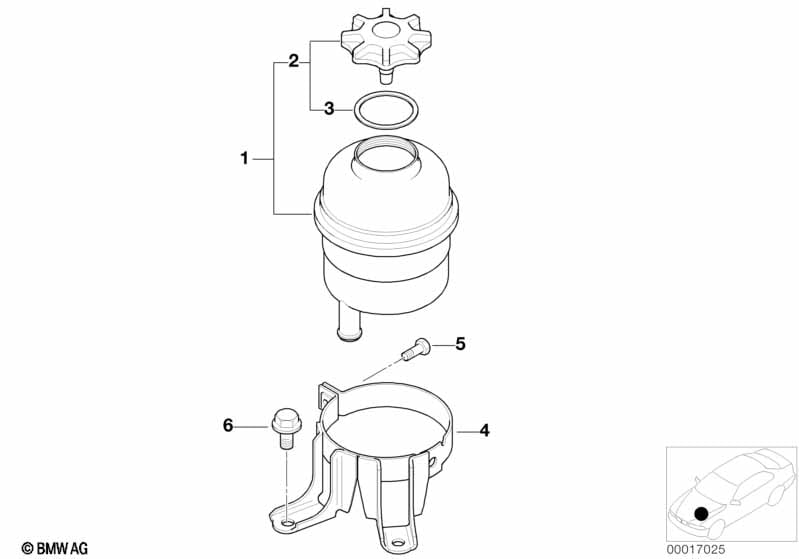

This Corpo olio / Pezzi singoli technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.

Corpo olio / Pezzi singoli
No. Descrizione Supplemento Qtà  Da   Fino a  Codice Ricambio Prezzo Note
01 Corpo olio CHF 11.S 1 32416851217 Shop at ECS Tuning
solo in collegamento con
-- Targhetta, corpo olio-pompa servosterzo CHF 11.S 1 71212122171 $2.78 Shop at ECS Tuning
02 Coperchio CHF 11.S 1 32416851332 Shop at ECS Tuning
solo in collegamento con
-- Targhetta, corpo olio-pompa servosterzo CHF 11.S 1 71212122171 $2.78 Shop at ECS Tuning
03 Anello di tenuta 1 32411128333 $2.38 Shop at ECS Tuning
04 Sostegno corpo olio 1 32411092940 $8.52 Shop at ECS Tuning
05 Vite Esagonale con Rondella M6X16-U1-8.8 1 07119904524 $0.25 Shop at ECS Tuning
06 Vite Esagonale con Rondella M8X18-U1-8.8 2 07119905529 $0.96 Shop at ECS Tuning

See Also

Frequently Asked Questions

What assembly is shown in the BMW 3 Series E46 323i Corpo olio / Pezzi singoli?
This technical diagram illustrates the Corpo olio / Pezzi singoli within the Sterzo group for the 3 Series E46 323i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Corpo olio (Part #32416851217).
Which models use the hardware listed in this Corpo olio / Pezzi singoli?
The hardware and components featured in the Corpo olio / Pezzi singoli are specific to the 3 Series E46 323i produced during 2000. These technical specifications ensure that parts like the Corpo olio (32416851217) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Corpo olio / Pezzi singoli assembly?
Each item in the Corpo olio / Pezzi singoli corresponds to the numbered list below the illustration. For the 3 Series E46 323i, you can identify the Corpo olio by locating its position on the schematic, which then links to the official BMW part number 32416851217 for the Sterzo section.
