Piantone d.sterzo-tube esterno/rivestim for BMW 1500-2000CS 1800

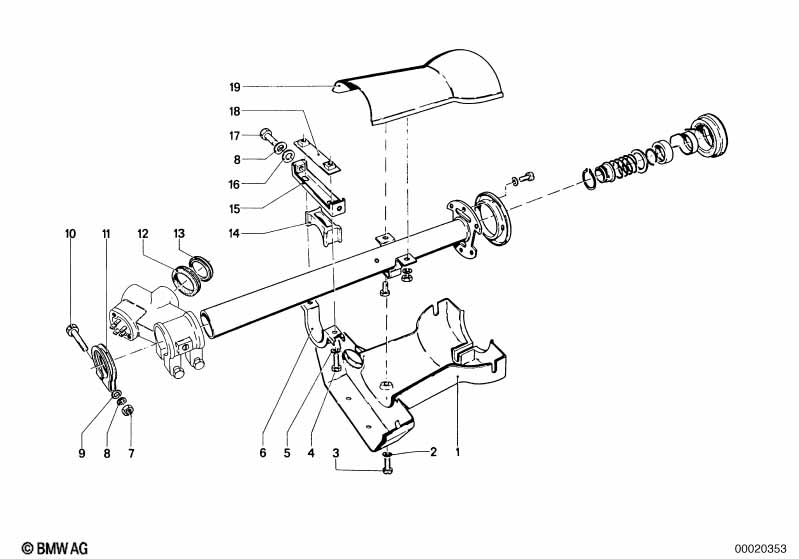

This Piantone d.sterzo-tube esterno/rivestim technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rivest.parte inferiore | 1 | 02/1962 | 12/1968 | 32312782166 | TERMINATO | Shop at ECS Tuning | |||
| 02 | Rosetta elastica | B5 | 3 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Vite a testa cilindrica | AM 5 X 12 | 1 | 07119919418 | TERMINATO | Shop at ECS Tuning | ||||
| 04 | Vite esagonale | M6X30 | 2 | 07119912283 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Rosetta elastica | B6 | 2 | 07119932072 | $0.09 | TERMINATO | Shop at ECS Tuning | |||
| 06 | Staffa | 1 | 32311101853 | TERMINATO | Shop at ECS Tuning | |||||
| 07 | Dado esagonale | M8-8-ZNS3 | 1 | 12/1968 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 07 | Dado esagonale | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Rosetta elastica | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Piastra d'appoggio | 8,4 | 1 | 07119931697 | $0.40 | Shop at ECS Tuning | ||||
| 10 | Vite esagonale | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Fascetta | 1 | 32312682215 | TERMINATO | Shop at ECS Tuning | |||||
| 12 | Anello | 1 | 32327580242 | TERMINATO | Shop at ECS Tuning | |||||
| 13 | Anello | 1 | 32327580241 | TERMINATO | Shop at ECS Tuning | |||||
| 14 | Supporto | 1 | 32312682135 | TERMINATO | Shop at ECS Tuning | |||||
| 15 | Supporto | 1 | 32312682117 | TERMINATO | Shop at ECS Tuning | |||||
| 16 | Piastra d'appoggio | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 19 | Rivestimento | 1 | 02/1962 | 12/1968 | 32312682150 | $29.76 | TERMINATO | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
