Volante M sport, airbag-smart, multifunz for BMW 5 Series E39 528i (2000)

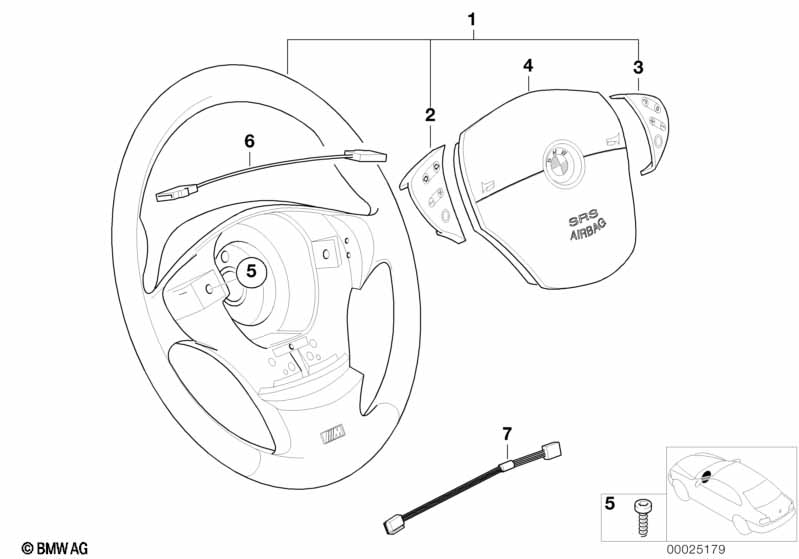

This Volante M sport, airbag-smart, multifunz technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Per veicoli fabbricati da 01.03.1999 |
|||||||||
| Per veicoli con Regolazione della velocità SOLO ADATTO PER RADIO/TELEFONO |
=Sì |
|||||||||
| 01 | M Volante sportivo airbag pelle | D=379 MM | 1 | 09/1999 | 09/2001 | 32342229103 | $511.00 | Shop at ECS Tuning | ||
| 02 | Interruttore radio/telefono | 1 | 03/1999 | 09/2001 | 61312490233 | $120.27 | TERMINATO | Shop at ECS Tuning | ||
| 03 | Interrutt.radio/telefono/regol.velocità | 1 | 03/1999 | 09/2001 | 61312695128 | $120.27 | TERMINATO | Shop at ECS Tuning | ||
| 04 | Piastra antiurto, airbag | 1 | 03/1999 | 09/2001 | 32342228970 | $848.67 | Shop at ECS Tuning | |||
| 05 | Vite Torx | M6X15 8.8 T30 | 2 | 03/1999 | 09/2001 | 32341097110 | $1.41 | Shop at ECS Tuning | ||
| 06 | Tubo di collegamento | 1 | 03/1999 | 09/2001 | 61102493715 | $9.58 | Shop at ECS Tuning | |||
| 07 | tubo di collegamento sterzo | 1 | 03/1999 | 09/2001 | 61102695146 | $15.03 | Shop at ECS Tuning | |||
Note
- TERMINATO = Il ricambio è fuori produzione.
