Supporto assale posteriore/sospens.ruote for BMW 8 Series E31 840i

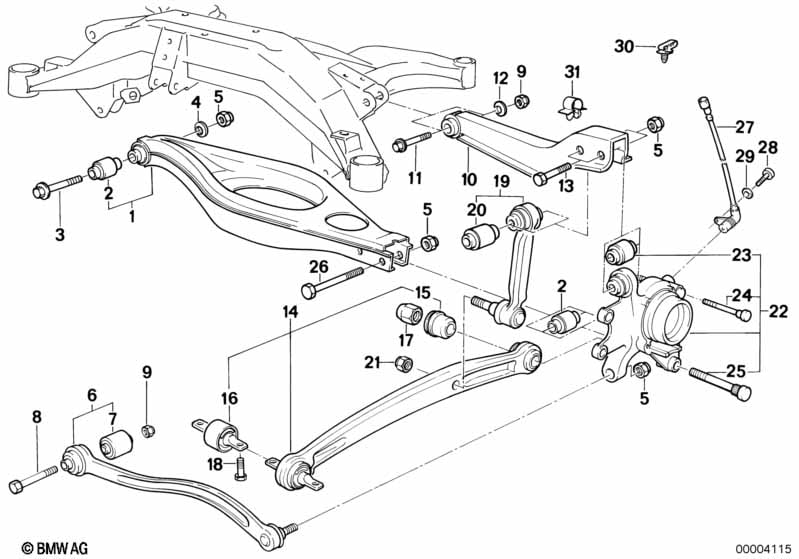

This Supporto assale posteriore/sospens.ruote technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Traversa | 2 | 33321139651 | $284.61 | TERMINATO | Shop at ECS Tuning | ||||
| 02 | Snodo sferico | 4 | 33321135131 | $61.11 | Shop at ECS Tuning | |||||
| 03 | Vite eccentrica | M14X1,5X95 | 2 | 33321136453 | Shop at ECS Tuning | |||||
| 04 | Rosetta eccentrico | 14 | 2 | 33321133882 | $10.11 | TERMINATO | Shop at ECS Tuning | |||
| 05 | Dado esagonale a bloccaggio automatico | M14X1,5 | X | 07129922745 | $1.04 | Shop at ECS Tuning | ||||
| 06 | Asta d.espansione c.supporto d.gomma SI. | 1 | 33321135134 | $146.29 | TERMINATO | Shop at ECS Tuning | ||||
| 06 | Asta d.espansione c.supporto d.gomma de. | 1 | 33321135135 | $146.29 | TERMINATO | Shop at ECS Tuning | ||||
| 07 | Supporto di gomma d'acciaio | 2 | 31121124622 | $30.37 | Shop at ECS Tuning | |||||
| Necessario per la riparazione | ||||||||||
| -- | Strum. di montaggio | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 08 | Vite esagonale | M12X1,5X77 | 2 | 07119914684 | $2.09 | Shop at ECS Tuning | ||||
| 09 | Dado esagonale a bloccaggio automatico | M12X1,5-10-PHR | 4 | 07129900047 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Braccio trasversale | 2 | 33321138015 | $292.56 | Shop at ECS Tuning | |||||
| 11 | Vite eccentrica | M12X1,5X78 | 2 | 33321133883 | $11.98 | TERMINATO | Shop at ECS Tuning | |||
| 12 | Rosetta eccentrico | 2 | 33321133884 | $4.50 | Shop at ECS Tuning | |||||
| 13 | Vite esagonale | M14X1,5X70 | 4 | 07119914832 | $2.60 | Shop at ECS Tuning | ||||
| 14 | Barra longitudinale sinistra | 1 | 33321090549 | $551.75 | Shop at ECS Tuning | |||||
| 14 | Barra longitudinale destra | 1 | 33321090550 | $551.75 | Shop at ECS Tuning | |||||
| 15 | Suppporto di gomma | 2 | 33321133864 | $42.63 | Shop at ECS Tuning | |||||
| 16 | Suppporto di gomma | 2 | 33321090452 | $120.99 | Shop at ECS Tuning | |||||
| 17 | Dado esagonale a bloccaggio automatico | M18X1,5 | 2 | 33321090060 | $2.56 | Shop at ECS Tuning | ||||
| 18 | Vite esagonale | M14X1,5X45 | 4 | 07119911653 | $2.35 | Shop at ECS Tuning | ||||
| 19 | Puntone di spinta | 2 | 33321133877 | $146.29 | Shop at ECS Tuning | |||||
| 20 | Suppporto di gomma | 2 | 33321133879 | $32.04 | Shop at ECS Tuning | |||||
| 21 | Dado esagonale a bloccaggio automatico | M16X1,5 | 2 | 07129922754 | $1.09 | Shop at ECS Tuning | ||||
| 22 | Sostegno ruota posteriore sinistra | 1 | 33321090335 | $731.30 | Shop at ECS Tuning | |||||
| 22 | Sostegno ruota posteriore destra | 1 | 33321090336 | $731.30 | TERMINATO | Shop at ECS Tuning | ||||
| 23 | Snodo sferico | 2 | 33321137819 | $80.02 | Shop at ECS Tuning | |||||
| 24 | Bullone zigrinato | M10X8 10.9 | 2 | 33321133943 | $6.37 | TERMINATO | Shop at ECS Tuning | |||
| 25 | Bullone zigrinato | M18X1,5X95 10.9 | 2 | 33321133944 | $8.79 | Shop at ECS Tuning | ||||
| 26 | Vite esagonale | M14X1,5X85 | 2 | 07119914829 | $5.82 | Shop at ECS Tuning | ||||
| 27 | Generatore d'impulso sinistra | VDO | 1 | 09/1991 | 12/1994 | 34521181913 | $275.84 | Shop at ECS Tuning | ||
| 27 | Generatore d'impulso destra | VDO | 1 | 09/1991 | 12/1994 | 34521181914 | $275.84 | Shop at ECS Tuning | ||
| 27 | Generatore d'impulso sinistra | AB-ELEKTRONIK | 1 | 12/1994 | 34521163113 | $275.84 | Shop at ECS Tuning | |||
| 27 | Generatore d'impulso destra | AB-ELEKTRONIK | 1 | 12/1994 | 34521163114 | $275.84 | Shop at ECS Tuning | |||
| 28 | Vite ISA | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
| 29 | Rosetta elastica nera | B6-ZN | 2 | 08/1990 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 29 | Piastra d'appoggio | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 30 | Ritegno di cavo | X | 33181181123 | $1.90 | TERMINATO | Shop at ECS Tuning | ||||
| 31 | Sostengo d condotto | D=10,8MM | 1 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
Note
- TERMINATO = Il ricambio è fuori produzione.
