Sensore past. freno ruota post. for BMW 7 Series E23 728i (1986)

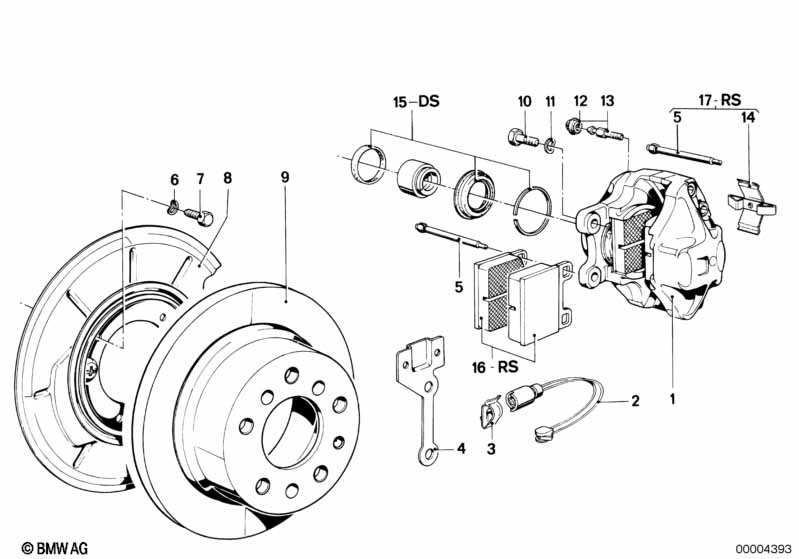

This Sensore past. freno ruota post. technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sella di freno sinistra | 1 | 34213905809 | Shop at ECS Tuning | ||||||
| 01 | Sella del freno destra | 1 | 34213905810 | Shop at ECS Tuning | ||||||
| 02 | Sensor dell'usura guarnizioni freno | 1 | 34351180780 | $10.49 | TERMINATO | Shop at ECS Tuning | ||||
| 03 | Morsetta fermacavo | D=10-12MM | 2 | 61131361897 | $0.42 | TERMINATO | Shop at ECS Tuning | |||
| 04 | Supporto | 1 | 34211118955 | TERMINATO | Shop at ECS Tuning | |||||
| 05 | Perno | 4 | 34211120397 | TERMINATO | Shop at ECS Tuning | |||||
| 06 | Piastra d'appoggio | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Vite esagonale | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 08 | Lamiera di protezione sinistra | 1 | 34213905461 | Shop at ECS Tuning | ||||||
| 08 | Lamiera di protezione destra | 1 | 34213905462 | Shop at ECS Tuning | ||||||
| 09 | Disco freno | 2 | 34213905409 | Shop at ECS Tuning | ||||||
| 09 | Disco freno | 280X10 | 2 | 34211152298 | $72.88 | Shop at ECS Tuning | ||||
| 10 | Vite esagonale | M10X27 10.9 | 4 | 34211118841 | $1.07 | Shop at ECS Tuning | ||||
| 11 | Rosetta elastica | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 12 | Cappuccio parapolvere | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 13 | Valvola spurgo aria | 2 | 34211103211 | $5.59 | Shop at ECS Tuning | |||||
| 14 | Molla di ritegno | 2 | 34211120398 | TERMINATO | Shop at ECS Tuning | |||||
| 15 | Corred.di riparaz.pinza del freno disco | 2 | 34213909081 | Shop at ECS Tuning | ||||||
| 16 | Corredo rep.,guarnizioni freno | 1 | 34213909083 | Shop at ECS Tuning | ||||||
| 17 | Serie pezzi montabili | 1 | 34211150559 | $24.25 | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
