Tubazione freno anteriore ABS for BMW 3 Series E30 318i (1991)

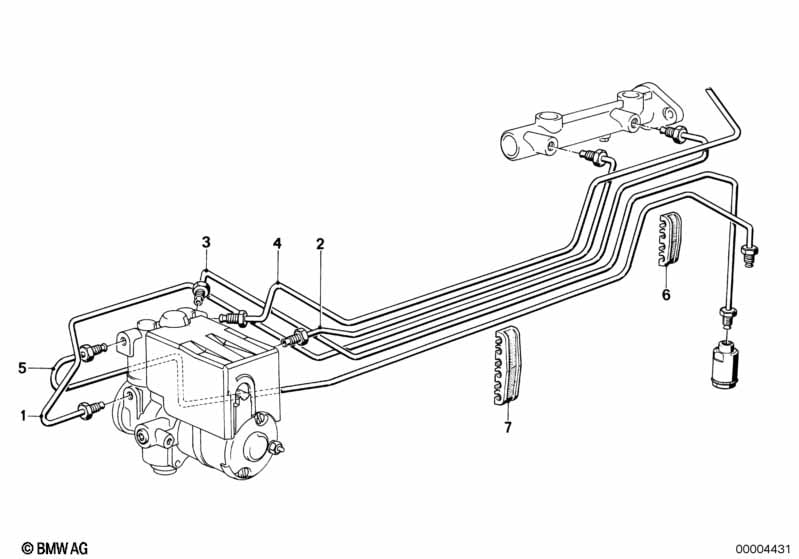

This Tubazione freno anteriore ABS technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tubazione | M10/M10-886MM | 1 | 34326755597 | $10.03 | Shop at ECS Tuning | ||||
| 02 | Tubazione | M10/M10-544MM | 1 | 34323412744 | $24.65 | Shop at ECS Tuning | ||||
| 03 | Tubazione | M10/M10-940MM | 1 | 34326755600 | $8.65 | Shop at ECS Tuning | ||||
| 04 | Tubazione | M10/M10-2074MM | 1 | 34326755651 | $10.03 | Shop at ECS Tuning | ||||
| 05 | Tubazione | M10/M10-829MM | 1 | 34326755594 | $8.65 | Shop at ECS Tuning | ||||
| 06 | Distanziatore quadruplo | 1 | 34326777692 | $0.38 | Shop at ECS Tuning | |||||
| 07 | Sostegno tubazione freno | 3 | 34321155786 | $1.43 | TERMINATO | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
