Tubazione freno anteriore ABS/ASC+T for BMW 7 Series E32 750i (1989)

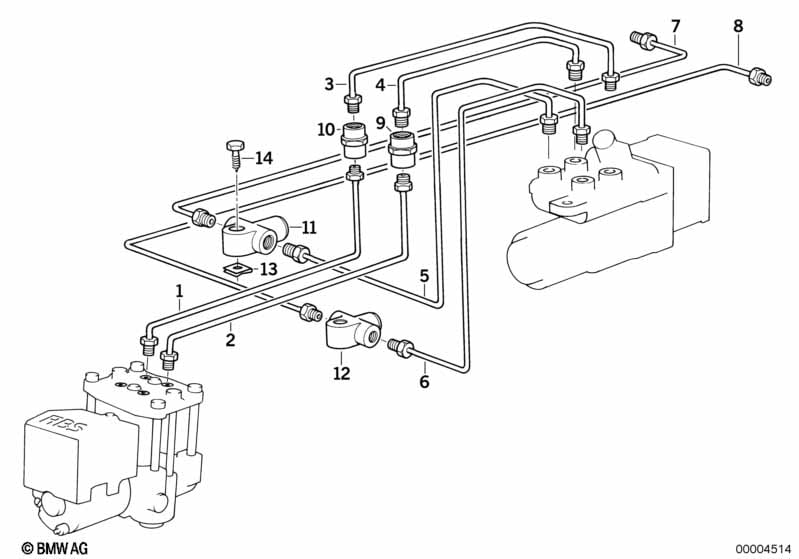

This Tubazione freno anteriore ABS/ASC+T technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tubazione | M10/M10-1146MM | 1 | 34326755610 | $8.65 | Shop at ECS Tuning | ||||
| 02 | Tubazione | M10/M12-990MM | 1 | 34326755504 | $5.83 | Shop at ECS Tuning | ||||
| 03 | Tubazione | M10/M10-260MM | 1 | 34326755555 | $5.83 | Shop at ECS Tuning | ||||
| 04 | Tubazione | M12/M12-214MM | 1 | 34326755532 | $5.13 | TERMINATO | Shop at ECS Tuning | |||
| 05 | Tubazione | M12/M12-368MM | 1 | 34326755535 | $4.41 | Shop at ECS Tuning | ||||
| 06 | Tubazione | M10/M10-470MM | 1 | 34326755576 | $7.60 | Shop at ECS Tuning | ||||
| 07 | Tubazione | M10/M12-4257MM | 1 | 34326755529 | Shop at ECS Tuning | |||||
| 08 | Tubazione | M10/M10-3075MM | 1 | 34326755684 | $17.08 | Shop at ECS Tuning | ||||
| 09 | Pezzo intermedio | M12X1 | 1 | 34326757285 | $4.08 | Shop at ECS Tuning | ||||
| 11 | Pezzo intermedio | M12X1 | 1 | 34321160029 | $17.30 | TERMINATO | Shop at ECS Tuning | |||
| 12 | Pezzo intermedio | M10X1 | 1 | 34321160028 | $7.23 | Shop at ECS Tuning | ||||
| 13 | Dado per lamiera | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 14 | Vite esagonale per lamiera | ST6,3X32-C-Z1 | 2 | 07119916975 | $0.36 | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
