Power Kit pastiglie freni anteriori for BMW 1 Series F20 LCI 120d (2017)

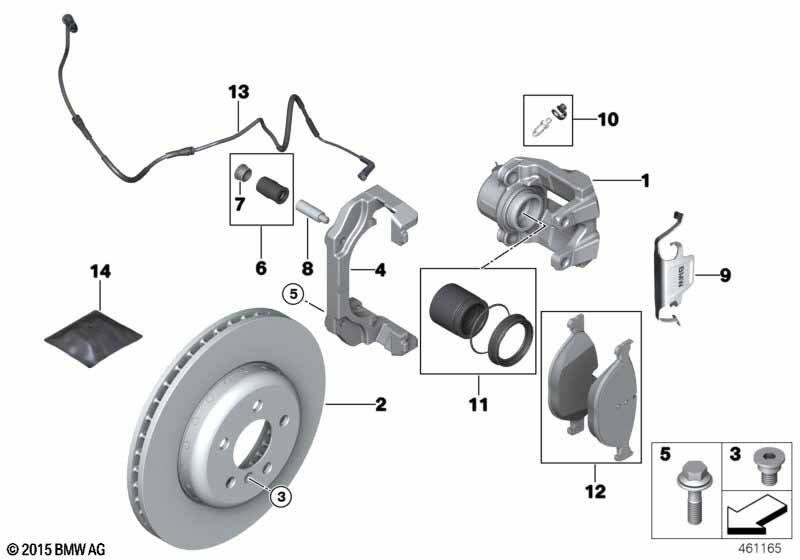

This Power Kit pastiglie freni anteriori technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 LCI 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attenzione: adatto solo per M Performance Power Kit Per veicoli con M Freno Sport |
S2NHA=Non |
||||||||
| 01 | Corpo sella del freno sinistra | 1 | 34116857687 | Shop at ECS Tuning | ||||||
| 01 | Corpo sella del freno destra | 1 | 34116857688 | Shop at ECS Tuning | ||||||
| 02 | Disco freno ventilato | 312X24 | 2 | 34118848417 | Shop at ECS Tuning | |||||
| 03 | Vite esagonale interno | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 04 | Porta freno | 2 | 34116850971 | Shop at ECS Tuning | ||||||
| 05 | Vite con testa Torx con rondella | M12X1,5X43 ZNS3 | 4 | 34106864424 | Shop at ECS Tuning | |||||
| 06 | Corredo riparazione boccola d.guida | 2 | 34412354195 | Shop at ECS Tuning | ||||||
| 07 | Tappo di protezione | 4 | 34106790925 | Shop at ECS Tuning | ||||||
| 08 | Vite di guida | 4 | 34106790926 | Shop at ECS Tuning | ||||||
| 09 | Molla di ritegno design BMW | 2 | 34116860087 | Shop at ECS Tuning | ||||||
| 10 | Serie di riparazione valvola spurgo aria | 2 | 34116852852 | Shop at ECS Tuning | ||||||
| 11 | Corred.di riparaz.pinza del freno disco | 2 | 34106790928 | Shop at ECS Tuning | ||||||
| 12 | Kit ripar.pastiglie freno senza amianto | 1 | 34118855010 | Shop at ECS Tuning | ||||||
| 13 | Sensor usura guarniz. freno ant. sx | 1 | 34356792289 | Shop at ECS Tuning | ||||||
| 14 | Pasta per ceppi freno | 3G | 2 | 83192158851 | Shop at ECS Tuning | |||||
