Struttura elementi singoli for BMW 7 Series E32 735iL (1992)

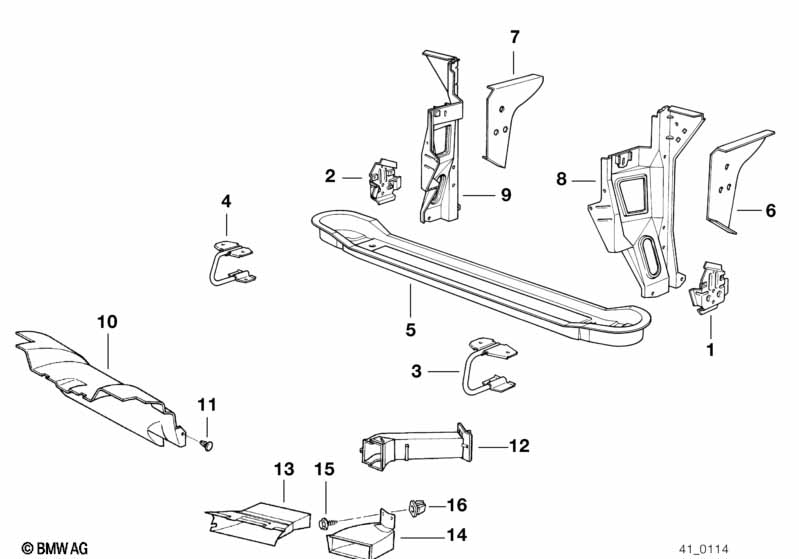

This Struttura elementi singoli technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sede fermo paraurti sinistro | 1 | 41141958041 | $7.15 | Shop at ECS Tuning | |||||
| 02 | Sede fermo paraurti destro | 1 | 41141958042 | $7.15 | Shop at ECS Tuning | |||||
| 03 | Occhione di traino | 1 | 41111978150 | $15.38 | Shop at ECS Tuning | |||||
| 04 | Occhione di traino | 1 | 41111978150 | $15.38 | Shop at ECS Tuning | |||||
| 05 | Traversa anteriore | 1 | 41111957186 | $100.21 | Shop at ECS Tuning | |||||
| 06 | Lamiera d.collegam. sinistra | 1 | 41111958045 | $25.52 | Shop at ECS Tuning | |||||
| 07 | Lamiera d.collegam. destra | 1 | 41111958046 | $25.52 | Shop at ECS Tuning | |||||
| 08 | Appoggio sinistra | 1 | 41131957183 | $28.11 | Shop at ECS Tuning | |||||
| 09 | Appoggio destra | 1 | 41131957184 | $28.11 | Shop at ECS Tuning | |||||
| 10 | Tubazione d'aria | 1 | 04/1989 | 51718113329 | $41.40 | Shop at ECS Tuning | ||||
| 11 | Clip | 2 | 51711916039 | $0.35 | Shop at ECS Tuning | |||||
| 12 | Canale aria del freno sinistra | 1 | 51718101961 | $5.96 | Shop at ECS Tuning | |||||
| 12 | Canale aria del freno destra | 1 | 51718101962 | $5.96 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 735iL Struttura elementi singoli?
- This technical diagram illustrates the Struttura elementi singoli within the Carrozzeria - componenti in lamiera group for the 7 Series E32 735iL produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Sede fermo paraurti sinistro (Part #41141958041).
- Which models use the hardware listed in this Struttura elementi singoli?
- The hardware and components featured in the Struttura elementi singoli are specific to the 7 Series E32 735iL produced during 1992. These technical specifications ensure that parts like the Sede fermo paraurti sinistro (41141958041) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Struttura elementi singoli assembly?
- Each item in the Struttura elementi singoli corresponds to the numbered list below the illustration. For the 7 Series E32 735iL, you can identify the Sede fermo paraurti sinistro by locating its position on the schematic, which then links to the official BMW part number 41141958041 for the Carrozzeria - componenti in lamiera section.
