Fiancata anteriore for BMW 3 Series E21 316 (1983)

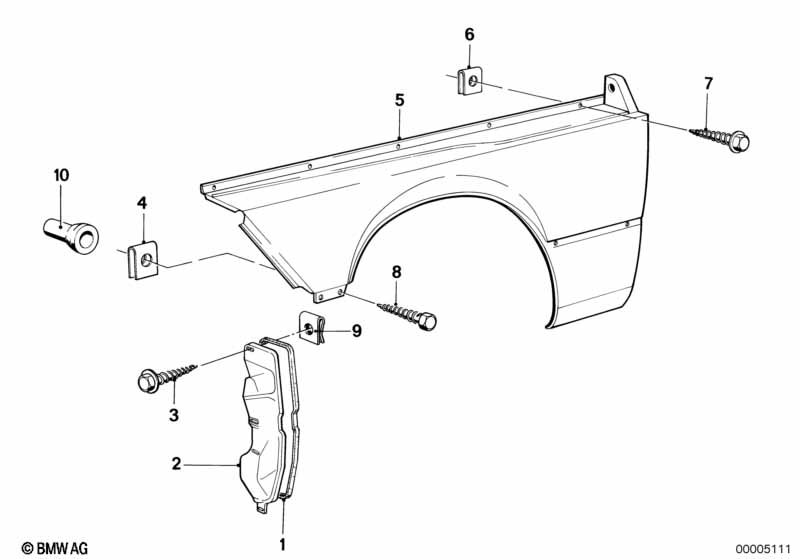

This Fiancata anteriore technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gomma di tenuta | 2 | 51711848829 | $6.66 | Shop at ECS Tuning | |||||
| 02 | Lamiera di copertura anteriore sinistra | 1 | 51711852737 | $69.11 | Shop at ECS Tuning | |||||
| 02 | Lamiera di copertura anteriore destra | 1 | 51711852738 | $69.11 | TERMINATO | Shop at ECS Tuning | ||||
| 03 | Vite esagonale per lamiera | ST4,8X16-ZNS3 | 8 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Dado per lamiera | ST4,8-13-ZNS3 | 2 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Fiancata anteriore sinistra | 1 | 41351846695 | $349.14 | Shop at ECS Tuning | |||||
| 05 | Fiancata anteriore destra | 1 | 41351846696 | $349.14 | Shop at ECS Tuning | |||||
| 06 | Dado per lamiera | B6,5 | X | 32412482060 | $0.20 | TERMINATO | Shop at ECS Tuning | |||
| 07 | Vite per lamiera | B6,5X16 | X | 12138530118 | $0.40 | TERMINATO | Shop at ECS Tuning | |||
| 08 | Vite esagonale per lamiera | ST4,8X13-ZN3 | 2 | 07119904285 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Dado per lamiera | ST 4,8-4-ZNS3 | 2 | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Tappo di protezione | X | 17114670114 | $0.26 | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
