Pezzi di fondo posteriore for BMW 3 Series E30 325e (1987)

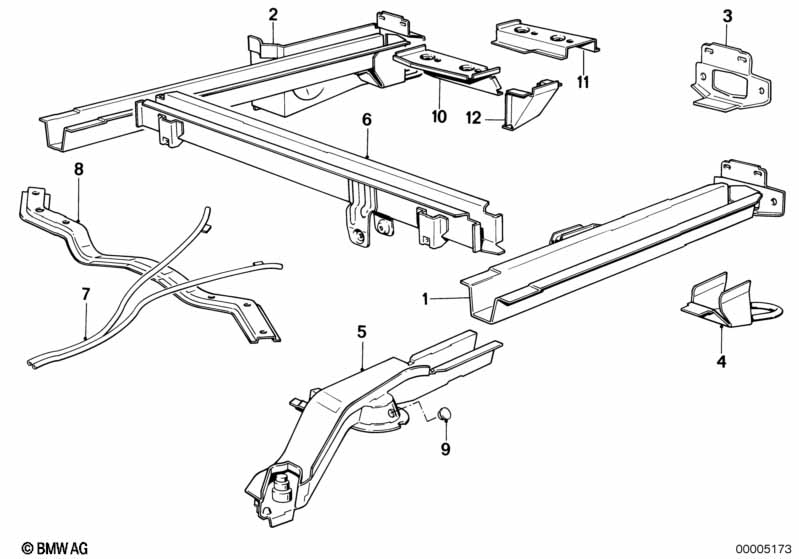

This Pezzi di fondo posteriore technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporto longitudinale poster. sinistra | 1 | 41111916997 | $106.59 | Shop at ECS Tuning | |||||
| 03 | Piastra | 2 | 41111911151 | $10.55 | TERMINATO | Shop at ECS Tuning | ||||
| 04 | Mensola da rimorchio | 1 | 41111924952 | $12.19 | TERMINATO | Shop at ECS Tuning | ||||
| 05 | Longherone sinistra | 1 | 41111962065 | $97.36 | TERMINATO | Shop at ECS Tuning | ||||
| 05 | Longherone destra | 1 | 41111962066 | $97.36 | TERMINATO | Shop at ECS Tuning | ||||
| 07 | Tubo | 1 | 41121916245 | $34.95 | TERMINATO | Shop at ECS Tuning | ||||
| 09 | Tappo di chiusura | D=14MM | 2 | 33111236826 | $0.23 | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
