Comando apertura cofano for BMW 5 Series E12 528i

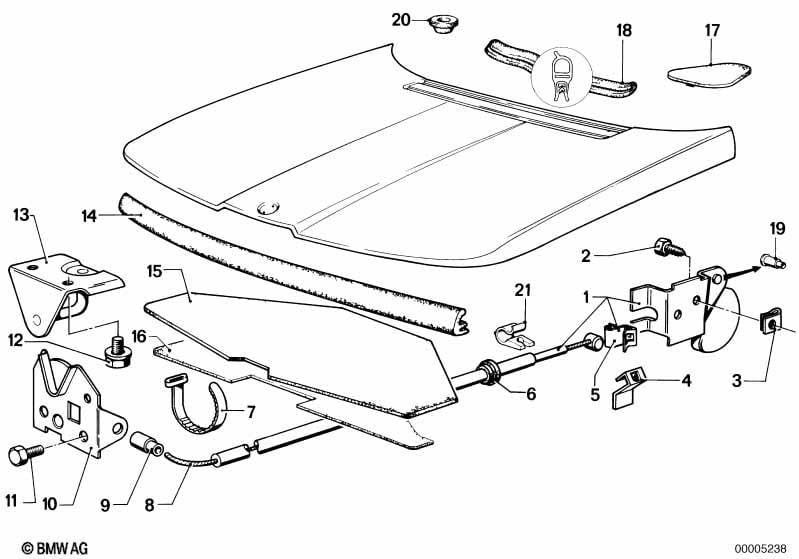

This Comando apertura cofano technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Comando apertura cofano | 1 | 51231817620 | $64.57 | Shop at ECS Tuning | |||||
| 02 | Vite esagonale per lamiera | ST6,3X19-C-Z1 | 2 | 07119916970 | $0.30 | Shop at ECS Tuning | ||||
| 03 | Dado per lamiera | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 04 | Clip | 1 | 51231819012 | $0.19 | Shop at ECS Tuning | |||||
| 05 | Clip | 1 | 51231819376 | $0.82 | Shop at ECS Tuning | |||||
| 06 | Bussola in gomma | 1 | 51231817626 | TERMINATO | Shop at ECS Tuning | |||||
| 07 | Legacavi | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Cavo Bowden | 1 | 51231817624 | $18.73 | Shop at ECS Tuning | |||||
| 09 | Raccordo | 1 | 51231816736 | $0.39 | TERMINATO | Shop at ECS Tuning | ||||
| 09 | Raccordo | 1 | 51231872968 | $0.28 | Shop at ECS Tuning | |||||
| 10 | Chiusura Sport.frontal | 1 | 51231819018 | $6.68 | TERMINATO | Shop at ECS Tuning | ||||
| 11 | Vite esagonale | M6X10 | 2 | 07119900054 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Vite Esagonale con Rondella | M6X16-Z4-2 | X | 07119915024 | $1.89 | Shop at ECS Tuning | ||||
| 13 | Staffa di chiusura | 1 | 51231826362 | $17.18 | TERMINATO | Shop at ECS Tuning | ||||
| 14 | Tenuta | L=1000 | 1 | 51711847061 | $12.32 | TERMINATO | Shop at ECS Tuning | |||
| 16 | Guarnizione smorzam. | 1 | 09/1976 | 51481848366 | $77.52 | Shop at ECS Tuning | ||||
| 18 | Tenuta | 1 | 09/1976 | 51231902906 | $57.44 | TERMINATO | Shop at ECS Tuning | |||
| 19 | Rivetto | 1 | 51231817623 | $0.58 | Shop at ECS Tuning | |||||
| 20 | Tappo di chiusura | D=14MM | 2 | 51715690082 | TERMINATO | Shop at ECS Tuning | ||||
| 21 | Morsetta fermacavo | D=6MM | 2 | 63121364431 | $0.93 | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
