Ossatura laterale for BMW 3 Series E36 318tds (1998)

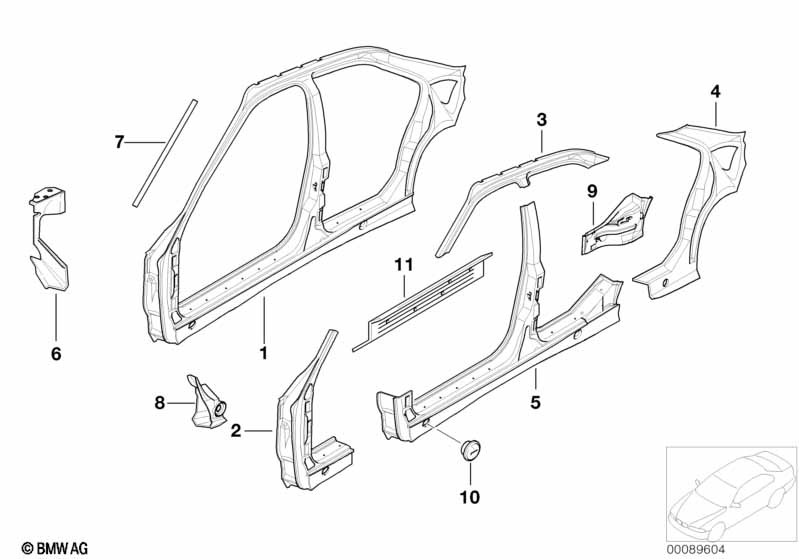

This Ossatura laterale technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ossatura laterale sinistra | 1 | 41008224775 | $1107.13 | Shop at ECS Tuning | |||||
| 01 | Ossatura laterale destra | 1 | 41008224776 | $1107.13 | Shop at ECS Tuning | |||||
| 02 | Montante a esterno sinistra | 1 | 41218130101 | $603.43 | Shop at ECS Tuning | |||||
| 02 | Montante A esterno destra | 1 | 41218130102 | $544.60 | Shop at ECS Tuning | |||||
| 03 | Telaio del tetto sinistra | 1 | 41008132497 | $345.96 | TERMINATO | Shop at ECS Tuning | ||||
| 03 | Telaio del tetto destra | 1 | 41008132498 | $371.99 | Shop at ECS Tuning | |||||
| 04 | Montante C esterno sinistra | 1 | 41008132917 | $214.14 | Shop at ECS Tuning | |||||
| 04 | Montante C esterno destra | 1 | 41008132918 | $214.14 | Shop at ECS Tuning | |||||
| 05 | Montante B con bancale sottoporta sin. | 1 | 41218224769 | $507.57 | Shop at ECS Tuning | |||||
| 05 | Montante B con bancale sottoporta destra | 1 | 41218224770 | $507.57 | Shop at ECS Tuning | |||||
| 06 | Lamiera d.collegam.p.telaio laterale S. | 1 | 41218119255 | $64.75 | Shop at ECS Tuning | |||||
| 06 | Lamiera d.collegam.p.telaio laterale d. | 1 | 41218119256 | $64.75 | Shop at ECS Tuning | |||||
| 07 | Cantonale d'unione p.paravento sinistra | 1 | 41218119799 | $12.84 | Shop at ECS Tuning | |||||
| 07 | Cantonale d'unione p.paravento destra | 1 | 41218119800 | $12.84 | TERMINATO | Shop at ECS Tuning | ||||
| 08 | Supporto sin. | 1 | 41218119259 | $15.74 | TERMINATO | Shop at ECS Tuning | ||||
| 08 | Supporto dest. | 1 | 41218119260 | $15.74 | TERMINATO | Shop at ECS Tuning | ||||
| 09 | Supporto longitudinale poster. sinistra | 4 | 41118132991 | $120.63 | TERMINATO | Shop at ECS Tuning | ||||
| 09 | Longherone posteriore destra | 1 | 41118132992 | $120.63 | TERMINATO | Shop at ECS Tuning | ||||
| 10 | Chiusura | SW SEIDENMATT | 4 | 09/1996 | 51718227694 | $0.85 | Shop at ECS Tuning | |||
| 11 | Longherone sinistra | 1 | 41128119251 | $86.81 | TERMINATO | Shop at ECS Tuning | ||||
| 11 | Longherone destra | 1 | 41128119252 | $86.81 | TERMINATO | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
