Tetto for BMW 5 Series E60 LCI 530i (2005)

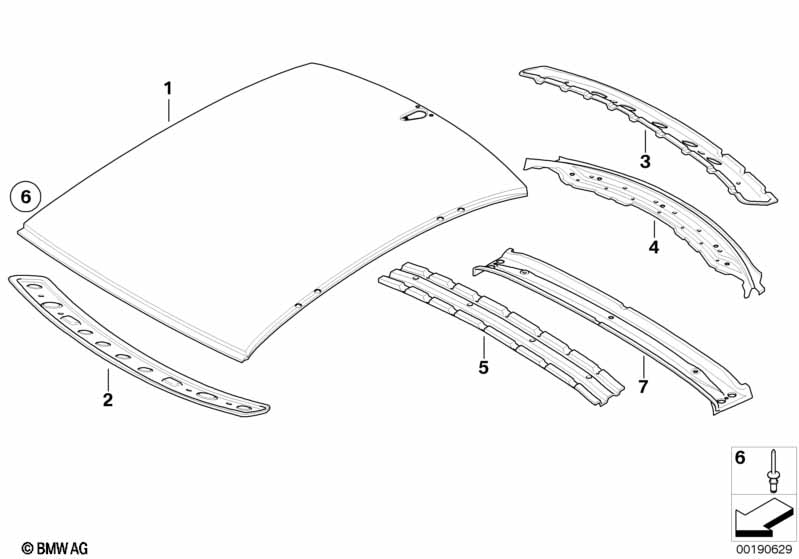

This Tetto technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Si esegue con tecnica di incollaggio/ rivettatura. solo adatto per Numero UL 41 31 000 |
||||||||||
| 01 | Rivestimento del tetto | 1 | 41317111362 | $1135.84 | Shop at ECS Tuning | |||||
| Necessario per la riparazione | ||||||||||
| -- | Vite | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | colla per carrozzeria K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Detergente R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Rivetto a ribadire N4 | 16 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Bordo riferimento perno a T | 1 | 41212460165 | Shop at ECS Tuning | ||||||
| -- | colla per carrozzeria K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Perno saldato a T | L=5,4MM | 20 | 41318412638 | Shop at ECS Tuning | |||||
| Si esegue con tecnica di incollaggio/ rivettatura. solo adatto per Numero UL 41 31 010 |
||||||||||
| 01 | Rivest.est.tett.p tett.scorr.E sollevab. | 1 | 41317070166 | $1277.41 | Shop at ECS Tuning | |||||
| Necessario per la riparazione | ||||||||||
| -- | Vite | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | colla per carrozzeria K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Detergente R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Rivetto a ribadire N4 | 16 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Mh-275/30 R 20 97v pilot alpin pa4 n0 xl | 854507 | 1 | 99992460135 | Shop at ECS Tuning | |||||
| -- | Bordo riferimento perno a T | 1 | 41212460165 | Shop at ECS Tuning | ||||||
| -- | colla per carrozzeria K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Perno saldato a T | L=5,4MM | 20 | 41318412638 | Shop at ECS Tuning | |||||
| 02 | Paravento superiore | 1 | 41217153681 | $91.33 | Shop at ECS Tuning | |||||
| 03 | Cornice lunotto sup. | 1 | 41327111310 | $108.79 | Shop at ECS Tuning | |||||
| 04 | Cornice lunotto inf. | 1 | 41127111211 | $60.29 | Shop at ECS Tuning | |||||
| 05 | Centino tetto | 1 | 41327111311 | $76.19 | Shop at ECS Tuning | |||||
| Spessore materiale / campo di serraggio 0,8 - 2,5mm |
||||||||||
| 06 | Rivetto di riparazione p bullone a T | 2,4X5MM | X | 07148497787 | TERMINATO | Shop at ECS Tuning | ||||
| Spessore materiale / campo di serraggio 2,5 - 6,0mm |
||||||||||
| 06 | Rivetto di riparazione p bullone a T | 2,4X8,5MM | X | 07148497788 | Shop at ECS Tuning | |||||
Note
- TERMINATO = Il ricambio è fuori produzione.
