Pezzi singoli per ossatura laterale for BMW 3 Series E92 323i (2009)

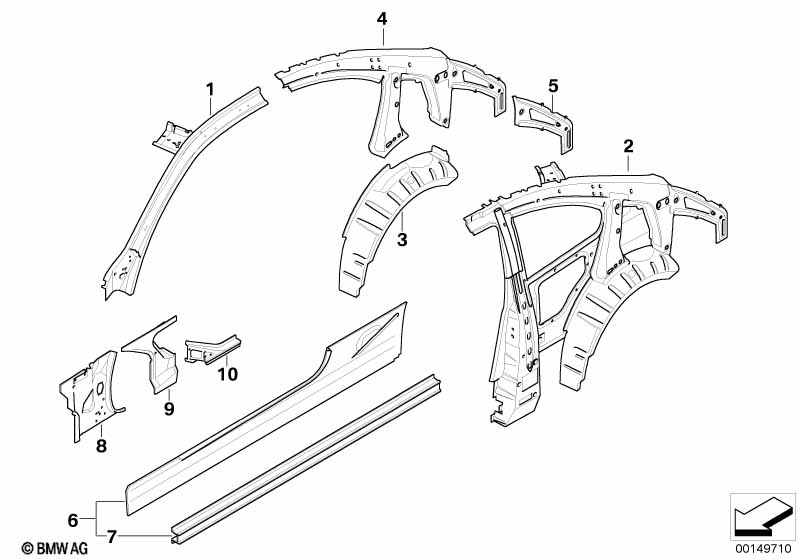

This Pezzi singoli per ossatura laterale technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Colleg. montante ant./telaio tetto sin. | 1 | 41217168951 | $167.03 | Shop at ECS Tuning | |||||
| 01 | Colleg. montante ant./telaio tetto des. | 1 | 41217168952 | $167.03 | Shop at ECS Tuning | |||||
| 02 | Telaio laterale interno sinistra | 1 | 41007168955 | $794.71 | Shop at ECS Tuning | |||||
| 02 | Telaio laterale interno destra | 1 | 41007168956 | $794.71 | Shop at ECS Tuning | |||||
| 03 | Passaruota esterno posteriore sinistra | 1 | 41007168959 | $170.62 | Shop at ECS Tuning | |||||
| 03 | Passaruota esterno posteriore destra | 1 | 41007168960 | $170.62 | Shop at ECS Tuning | |||||
| 04 | Rinforzo montante post. sin. | 1 | 41007168961 | $111.35 | Shop at ECS Tuning | |||||
| 04 | Rinforzo montante post. des. | 1 | 41007168962 | $111.35 | Shop at ECS Tuning | |||||
| 05 | Fascia di tensione montante C, sinis. | 1 | 41217144957 | $5.37 | Shop at ECS Tuning | |||||
| 05 | Fascia di tensione montante C, destra | 1 | 41217144958 | $5.37 | Shop at ECS Tuning | |||||
| 06 | Longherone sinistra | 1 | 41117168983 | $280.62 | Shop at ECS Tuning | |||||
| 06 | Longherone destra | 1 | 41117168984 | $280.62 | Shop at ECS Tuning | |||||
| 07 | Parte superiore, longherone sinistra | 1 | 41117145341 | $127.44 | Shop at ECS Tuning | |||||
| 07 | Parte superiore, longherone destra | 1 | 41117145342 | $127.44 | Shop at ECS Tuning | |||||
| 08 | Montante a interno sinistra | 1 | 41217145331 | $110.58 | Shop at ECS Tuning | |||||
| 08 | Montante a interno destra | 1 | 41217145332 | $110.58 | Shop at ECS Tuning | |||||
| 09 | Lamiera d.collegam.p.telaio laterale S. | 1 | 41217145339 | $40.22 | Shop at ECS Tuning | |||||
| 09 | Lamiera d.collegam.p.telaio laterale d. | 1 | 41217145340 | $40.22 | Shop at ECS Tuning | |||||
| 10 | Rinforzo montante A interno sinistra | 1 | 41217145333 | $34.45 | Shop at ECS Tuning | |||||
| 10 | Rinforzo montante A interno destra | 1 | 41217145334 | $34.45 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 323i Pezzi singoli per ossatura laterale?
- This technical diagram illustrates the Pezzi singoli per ossatura laterale within the Carrozzeria - componenti in lamiera group for the 3 Series E92 323i produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Colleg. montante ant./telaio tetto sin. (Part #41217168951).
- Which models use the hardware listed in this Pezzi singoli per ossatura laterale?
- The hardware and components featured in the Pezzi singoli per ossatura laterale are specific to the 3 Series E92 323i produced during 2009. These technical specifications ensure that parts like the Colleg. montante ant./telaio tetto sin. (41217168951) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pezzi singoli per ossatura laterale assembly?
- Each item in the Pezzi singoli per ossatura laterale corresponds to the numbered list below the illustration. For the 3 Series E92 323i, you can identify the Colleg. montante ant./telaio tetto sin. by locating its position on the schematic, which then links to the official BMW part number 41217168951 for the Carrozzeria - componenti in lamiera section.
