Ossatura laterale-particolari for BMW 5 Series F18 535Li (2013)

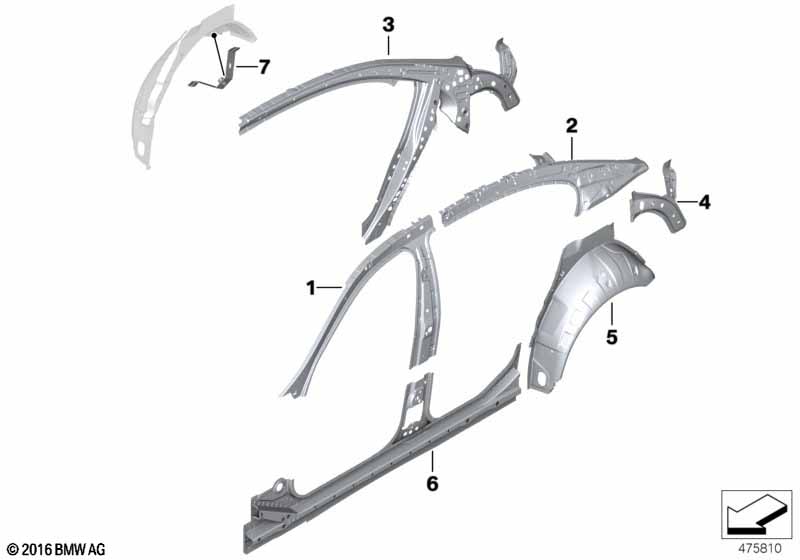

This Ossatura laterale-particolari technical drawing provides a detailed breakdown of the assembly for the 5 Series F18 535Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Telaio laterale int. ant. sx | 1 | 41217240451 | Shop at ECS Tuning | ||||||
| 01 | Telaio laterale int. ant. dx | 1 | 41217240452 | Shop at ECS Tuning | ||||||
| 02 | Montante post. int. sup. sin. | 1 | 41217262127 | Shop at ECS Tuning | ||||||
| 02 | Montante post. int. sup. des. | 1 | 41217262128 | Shop at ECS Tuning | ||||||
| 03 | Rinforzo montante post. sin. | 1 | 41217240459 | Shop at ECS Tuning | ||||||
| 03 | Rinforzo montante post. des. | 1 | 41217240460 | Shop at ECS Tuning | ||||||
| 04 | Fascia di tensione montante C, sinis. | 1 | 41217240547 | Shop at ECS Tuning | ||||||
| 04 | Fascia di tensione montante C, destra | 1 | 41217240548 | Shop at ECS Tuning | ||||||
| 05 | Passaruota esterno posteriore sinistra | 1 | 41217240465 | Shop at ECS Tuning | ||||||
| solo in collegamento con | ||||||||||
| -- | Tappo di chiusura | 106X76MM | 1 | 07147019823 | $1.43 | Shop at ECS Tuning | ||||
| 06 | Longherone interno sinistro | 1 | 41117259587 | Shop at ECS Tuning | ||||||
| 06 | Longherone interno destro | 1 | 41117259588 | Shop at ECS Tuning | ||||||
| 07 | Sostegno, filtro carbone attivo, sup. | 1 | 41217240448 | Shop at ECS Tuning | ||||||
| 07 | Sostegno, filtro carbone attivo, inf. | 1 | 41217240471 | Shop at ECS Tuning | ||||||
