Parti applicate vetratura for BMW 3 Series E30 M3

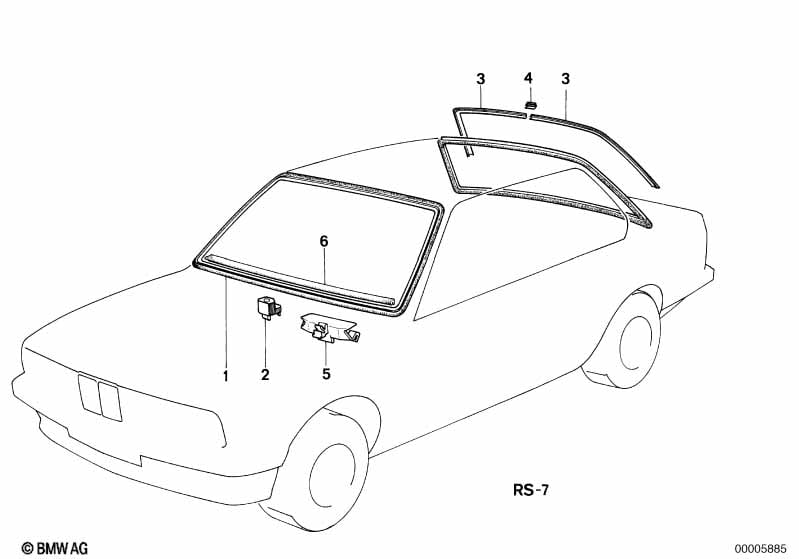

This Parti applicate vetratura technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guarnizione | 1 | 51311945082 | $41.21 | Shop at ECS Tuning | |||||
| 02 | Sostegno | 2 | 51311948155 | $0.83 | Shop at ECS Tuning | |||||
| 03 | Cornice ornamentale sinistra | 1 | 51311934901 | $107.83 | Shop at ECS Tuning | |||||
| 03 | Cornice ornamentale destra | 1 | 51311934902 | $107.83 | Shop at ECS Tuning | |||||
| 04 | Guarnizione | 1 | 51311937440 | $3.95 | Shop at ECS Tuning | |||||
| 05 | Clip | X | 51318177850 | $2.68 | Shop at ECS Tuning | |||||
| 06 | Protezione bordi | L=1354MM | 1 | 51721962064 | $39.77 | Shop at ECS Tuning | ||||
| 07 | Corredo riparazione parabrezza adesiv | 255 FC | 1 | 12/1990 | 81229407497 | $91.41 | TERMINATO | Shop at ECS Tuning | ||
| 07 | Corredo riparazione parabrezza adesiv | ULTRAFAST | 1 | 12/1990 | 83199407714 | $94.86 | TERMINATO | Shop at ECS Tuning | ||
| 07 | Kit di ripar. cristalli a freddo, 1 h | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Necessario per la riparazione | ||||||||||
| -- | Detergente R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
Note
- TERMINATO = Il ricambio è fuori produzione.
