Alettone anteriore motorsport for BMW 3 Series E30 M3

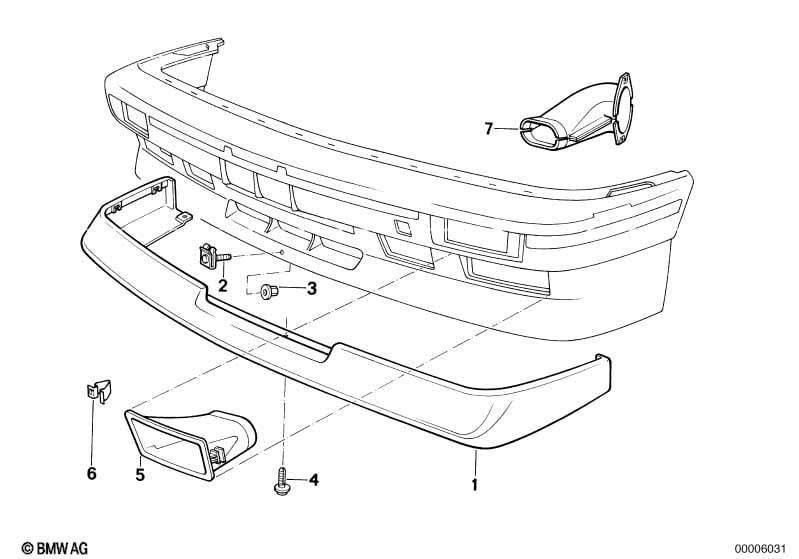

This Alettone anteriore motorsport technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spoiler anteriore | M SPORT E2 | 1 | 51712238178 | $556.24 | TERMINATO | Shop at ECS Tuning | |||
| SOLO ADATTO PER 'SONDERSERIE 89' | ||||||||||
| 01 | Spoiler anteriore | M SPORT E2 | 1 | 51712238178 | $556.24 | TERMINATO | Shop at ECS Tuning | |||
| 02 | Vite di bloccaggio | M SPORT E2 | X | 51712238177 | $1.48 | Shop at ECS Tuning | ||||
| 03 | Dado a cappello | X | 51112232040 | $0.42 | Shop at ECS Tuning | |||||
| 03 | Dado a cappello | M4 | X | 51169822502 | TERMINATO | Shop at ECS Tuning | ||||
| 04 | Ribadino ad espansione | D = 6MM | 7 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 05 | Collettore di aerazione sinistra | M SPORT E2/E3 | 1 | 51712238247 | $157.36 | Shop at ECS Tuning | ||||
| 05 | Collettore di aerazione destra | M SPORT E2/E3 | 1 | 51712238248 | $157.36 | Shop at ECS Tuning | ||||
| 06 | Fascetta | 4 | 51711910956 | $1.37 | Shop at ECS Tuning | |||||
| 07 | Guida dell'aria | M SPORT E2 / E3 | 2 | 51712230660 | $101.56 | Shop at ECS Tuning | ||||
| Per veicoli con Climatizzatore |
=Sì |
|||||||||
| 07 | Guida dell'aria | M SPORT E2 / E3 | 2 | 51712230660 | $101.56 | Shop at ECS Tuning | ||||
| 07 | Guida dell'aria destra | M SPORT E3 | 1 | 51712233042 | $172.67 | Shop at ECS Tuning | ||||
| 07 | Guida dell'aria | M SPORT E2 | 2 | 51712238246 | TERMINATO | Shop at ECS Tuning | ||||
Note
- TERMINATO = Il ricambio è fuori produzione.
