Emblemas / diciture for BMW 5 Series E34 525i (1990)

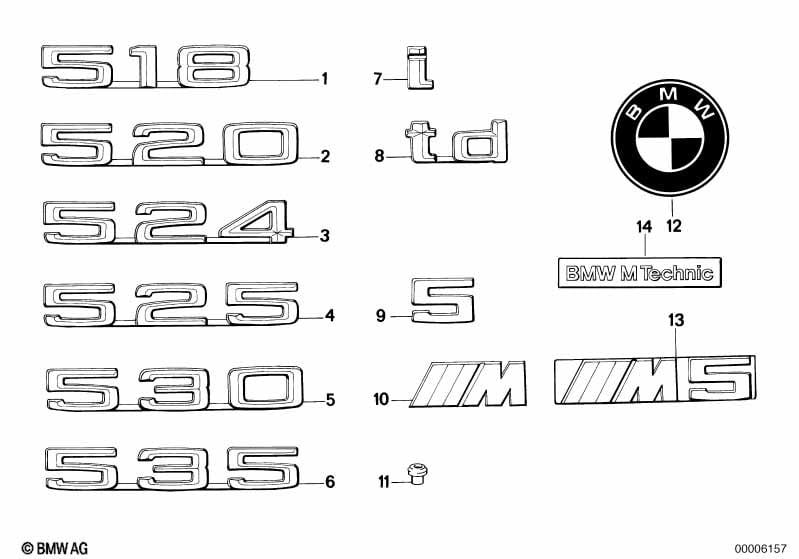

This Emblemas / diciture technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Sigla adesiv | "525" | 1 | 07/1991 | 51141946162 | $22.33 | Shop at ECS Tuning | |||
| 07 | Sigla adesiv posteriore | "I" | 1 | 07/1991 | 51141946165 | $12.63 | Shop at ECS Tuning | |||
| 11 | Bocchetta | 4 | 07/1991 | 51141807495 | $0.68 | Shop at ECS Tuning | ||||
| 11 | Bocchetta | 4 | 07/1991 | 51141852899 | $1.84 | Shop at ECS Tuning | ||||
| 12 | Placchetta | Ø 82MM | 2 | 07/1991 | 51148132375 | $32.02 | Shop at ECS Tuning | |||
| Necessario per la riparazione | ||||||||||
| -- | Bocchetta | 4 | 07/1991 | 51141807495 | $0.68 | Shop at ECS Tuning | ||||
| 12 | Placchetta | Ø 82MM | 2 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Necessario per la riparazione | ||||||||||
| -- | Bocchetta | 4 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525i Emblemas / diciture?
- This technical diagram illustrates the Emblemas / diciture within the Equipaggiamento della vettura group for the 5 Series E34 525i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Sigla adesiv (Part #51141946162).
- Which models use the hardware listed in this Emblemas / diciture?
- The hardware and components featured in the Emblemas / diciture are specific to the 5 Series E34 525i produced during 1990. These technical specifications ensure that parts like the Sigla adesiv (51141946162) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emblemas / diciture assembly?
- Each item in the Emblemas / diciture corresponds to the numbered list below the illustration. For the 5 Series E34 525i, you can identify the Sigla adesiv by locating its position on the schematic, which then links to the official BMW part number 51141946162 for the Equipaggiamento della vettura section.
