Convogliamenti aria for BMW MINI Countryman F60 Cooper (2019)

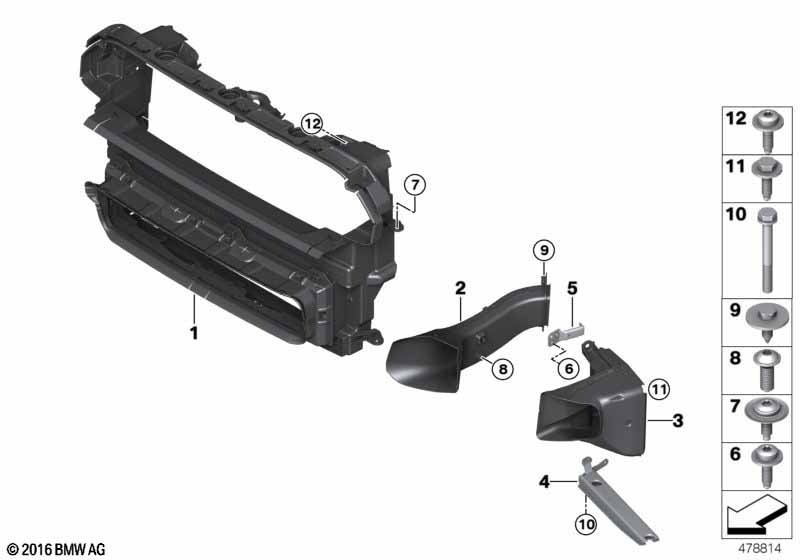

This Convogliamenti aria technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.

Convogliamenti aria
No. Descrizione Supplemento Qtà  Da   Fino a  Codice Ricambio Prezzo Note
Per veicoli con
Emissioni CO2

S1CBA=Non
01 Guida dell'aria radiatore 1 51747390474 Shop at ECS Tuning
Per veicoli con
Emissioni CO2
e
Protez. antincastro varianti per Paesi

S1CBA=Sì

S8SDA=Non
01 Guida dell'aria radiatore 1 51747484248 Shop at ECS Tuning
Per veicoli con
Versione per China
e
Emissioni CO2
e
Protez. antincastro varianti per Paesi

L8AAA=Sì

S1CBA=Sì

S8SDA=Sì
01 Guida dell'aria radiatore 1 51747390474 Shop at ECS Tuning
Per veicoli con
Versione per China
e
Emissioni CO2
e
Protez. antincastro varianti per Paesi

L8AAA=Sì

S1CBA=Sì

S8SDA=Non
01 Guida dell'aria radiatore 1 51747390474 Shop at ECS Tuning
Per veicoli con
Versione per China
e
Emissioni CO2
e
Protez. antincastro varianti per Paesi

L8AAA=Non

S1CBA=Sì

S8SDA=Sì
01 Guida dell'aria radiatore 1 51747390474 Shop at ECS Tuning
Per veicoli con
Kit aerodinamico JCW
e
MINI All 4 design equipaggiam. esterno

S3A1A=Non

S3CAA=Non
03 Convogliatore aria radiatore esterno sn. 1 51747411481 Shop at ECS Tuning
Per veicoli con
Kit aerodinamico JCW
o
MINI All 4 design equipaggiam. esterno

S3A1A=Sì

S3CAA=Sì
03 Convogliatore aria radiatore esterno sn. JCW 1 51747395507 Shop at ECS Tuning
Per veicoli con
Kit aerodinamico JCW
e
MINI All 4 design equipaggiam. esterno

S3A1A=Sì

S3CAA=Sì
03 Convogliatore aria radiatore esterno sn. JCW 1 51747395507 Shop at ECS Tuning
Per veicoli con
Kit aerodinamico JCW
e
MINI All 4 design equipaggiam. esterno

S3A1A=Sì

S3CAA=Non
03 Convogliatore aria radiatore esterno sn. JCW 1 51747395507 Shop at ECS Tuning
Per veicoli con
Kit aerodinamico JCW
e
MINI All 4 design equipaggiam. esterno

S3A1A=Non

S3CAA=Sì
03 Convogliatore aria radiatore esterno sn. JCW 1 51747395507 Shop at ECS Tuning
04 Supp. radiatore suppl. lato inferiore sx 1 51747325044 Shop at ECS Tuning
05 Supp. radiatore suppl. lato superiore sx 1 51747325045 Shop at ECS Tuning
06 Vite a testa piana M6X20-PCU2-10.9 2 07119908698 Shop at ECS Tuning
07 Vite a testa bombata con rond.di spess. M6X20 4 03/2023 07147406384 TERMINATO Shop at ECS Tuning
07 Vite testa bombata con rosetta elastica M6X20 4 07145A48F73 Shop at ECS Tuning
12 Vite M6X20 3 07119908722 Shop at ECS Tuning
Note
  • TERMINATO = Il ricambio è fuori produzione.
