Supporto posteriore for BMW 6 Series E63 630i (2007)

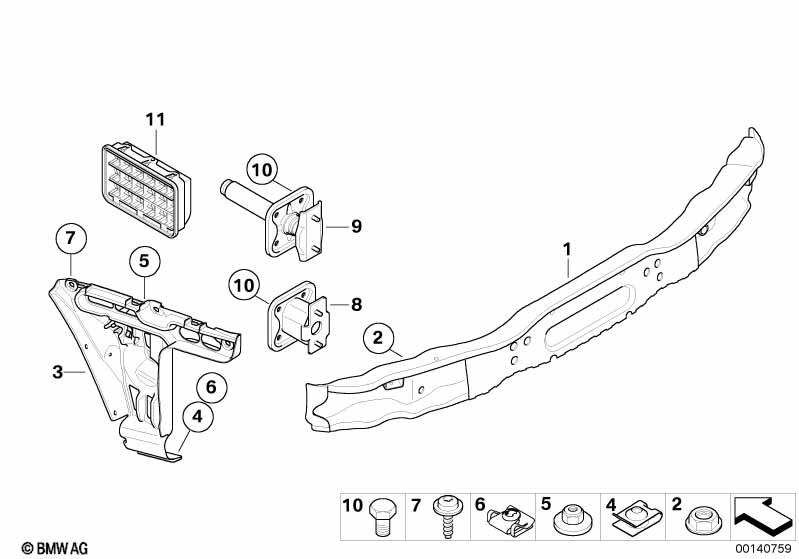

This Supporto posteriore technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sostegno paraurti posteriore | 1 | 09/2007 | 51127185480 | $318.63 | Shop at ECS Tuning | ||||
| 02 | Dado esagonale | 4 | 09/2007 | 07146971889 | $0.82 | Shop at ECS Tuning | ||||
| 03 | Sede paraurti posteriore sinistra | 1 | 09/2007 | 51127008839 | $31.20 | Shop at ECS Tuning | ||||
| 03 | Sede paraurti posteriore destra | 1 | 09/2007 | 51127008840 | $31.20 | Shop at ECS Tuning | ||||
| 04 | Dado per lamiera | ST4,8-9-ZNS3 | 2 | 09/2007 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 05 | Dado esagonale a bloccaggio automatico | M6 | 6 | 09/2007 | 51128400432 | $0.79 | Shop at ECS Tuning | |||
| 06 | Dado per lamiera | ST4,8MM | 2 | 09/2007 | 51437001566 | $0.65 | Shop at ECS Tuning | |||
| 07 | Torx-vite con rondella | ISA ST4.8X20 | 2 | 09/2007 | 07147075519 | $0.53 | Shop at ECS Tuning | |||
| 08 | Elemento di deform. post. sin. | 1 | 09/2007 | 51127076033 | $57.94 | +rest. | Shop at ECS Tuning | |||
| 08 | Elemento di deform. post. des. | 1 | 09/2007 | 51127076034 | $57.94 | +rest. | Shop at ECS Tuning | |||
| 10 | Vite esagonale | M10X12 | 8 | 09/2007 | 07147117789 | $2.56 | Shop at ECS Tuning | |||
| 11 | Lamierino di ventilazione posteriore | SCHWARZ | 2 | 09/2007 | 64226962293 | $7.30 | Shop at ECS Tuning |
Note
- +rest. = possibilità di restituzione della parte originale
