Mascherine e guarnizioni porta ant. for BMW MINI Countryman F60 Cooper (2019)

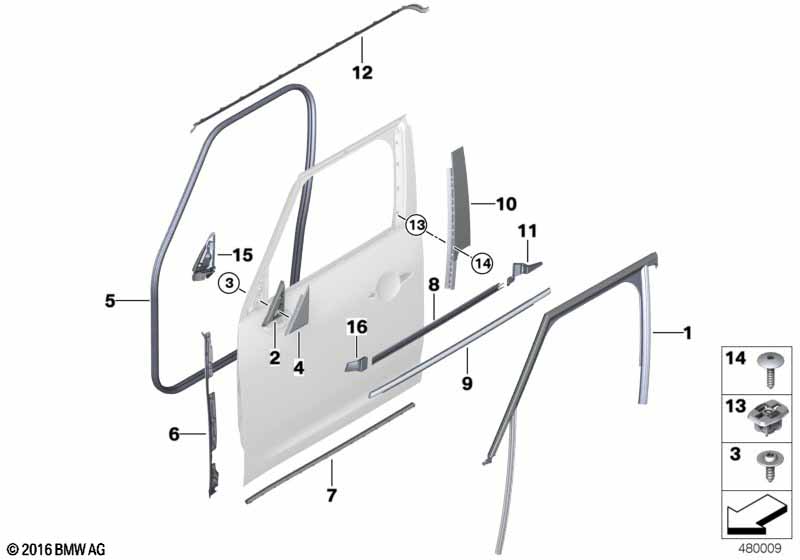

This Mascherine e guarnizioni porta ant. technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guida cristallo porta anteriore sin. | 1 | 51337390093 | Shop at ECS Tuning | ||||||
| 01 | Guida cristallo porta anteriore destra | 1 | 51337390094 | Shop at ECS Tuning | ||||||
| 02 | Guarniz.masch.cop.triangolo porta ant.sx | 1 | 51337390647 | Shop at ECS Tuning | ||||||
| 02 | Guarnizione masc.cop.triang.porta ant.dx | 1 | 51337390648 | Shop at ECS Tuning | ||||||
| 03 | Vite a testa bombata con rond.di spess. | DELTA PT4X12 | 2 | 07149200941 | Shop at ECS Tuning | |||||
| 04 | Mascherina coper.triangolo porta ant.sx | 1 | 51337390645 | Shop at ECS Tuning | ||||||
| 04 | Masch.copertura triangolo porta ant.dx | 1 | 51337390646 | Shop at ECS Tuning | ||||||
| 05 | Protezione bordi di porta anteriore | 2 | 51727475753 | Shop at ECS Tuning | ||||||
| 06 | Sigillatura giunture montante A sinistro | 1 | 51767390089 | Shop at ECS Tuning | ||||||
| 06 | Sigillatura giunture montante A dx | 1 | 51767390090 | Shop at ECS Tuning | ||||||
| 07 | Sigillatura giunti sottoporta porta ant | 2 | 51767390056 | Shop at ECS Tuning | ||||||
| 08 | Tenuta di canale interno porta ant. sin. | 1 | 51337390097 | Shop at ECS Tuning | ||||||
| 08 | Tenuta di canale interno porta ant. des. | 1 | 51337390098 | Shop at ECS Tuning | ||||||
| 09 | Copertura canale esterno porta ant.sin. | 1 | 51337390099 | Shop at ECS Tuning | ||||||
| 09 | Copertura canale esterno porta ant.des. | 1 | 51337390100 | Shop at ECS Tuning | ||||||
| 10 | Mascherina montante B porta ant. sinist | 1 | 51337390105 | Shop at ECS Tuning | ||||||
| 10 | Mascherina montante B porta ant.destra | 1 | 51337390106 | Shop at ECS Tuning | ||||||
| 11 | Guarn.masch. mont. centr.porta ant. sx | 1 | 51337390119 | Shop at ECS Tuning | ||||||
| 11 | Guarn.masch. mont. centr.porta ant. dx | 1 | 51337390120 | Shop at ECS Tuning | ||||||
| 12 | Modanatura tetto sx | 1 | 51337390179 | Shop at ECS Tuning | ||||||
| 12 | Modanatura tetto destra | 1 | 51337390180 | Shop at ECS Tuning | ||||||
| 13 | Clip | 8 | 51337140714 | Shop at ECS Tuning | ||||||
| 14 | Vite testa cil. | 8 | 07147374376 | Shop at ECS Tuning | ||||||
| Per veicoli con Sistema HiFi Harman Kardon |
S674A=Non |
|||||||||
| 15 | Schermo angolare interno sinistra | 1 | 51337390785 | Shop at ECS Tuning | ||||||
| 15 | Schermo angolare interno destra | 1 | 51337390786 | Shop at ECS Tuning | ||||||
| Per veicoli con Sistema HiFi Harman Kardon |
S674A=Sì |
|||||||||
| 15 | Schermo angolare interno sinistra | HARMAN / KARDON | 1 | 51337401333 | Shop at ECS Tuning | |||||
| 15 | Schermo angolare interno destra | HARMAN / KARDON | 1 | 51337401334 | Shop at ECS Tuning | |||||
| 16 | Sigillat. lamiera term. montante A sx | 1 | 51337401777 | Shop at ECS Tuning | ||||||
| 16 | Sigillat. lamiera term. montante A dx | 1 | 51337401778 | Shop at ECS Tuning | ||||||
