Retrovisori esterni for BMW MINI Cabrio F57 JCW

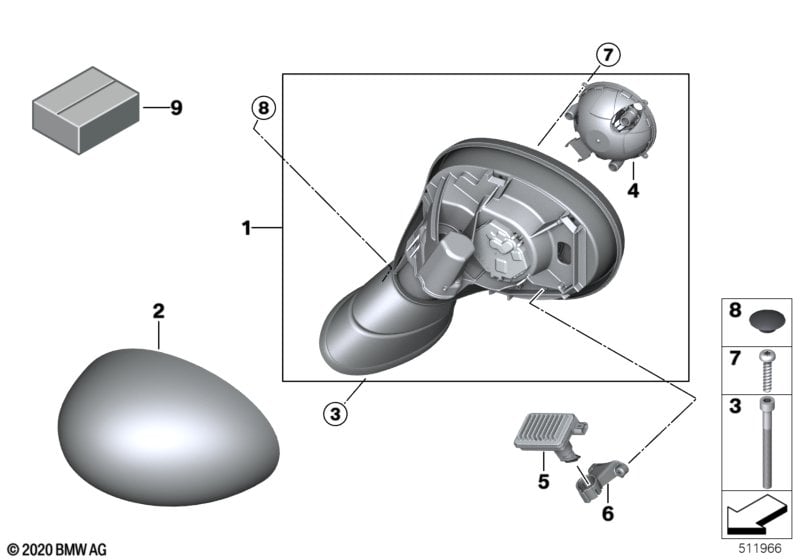

This Retrovisori esterni technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | In caso di stridii in fase di apertura e chiusura consultare l'intervento PuMA 62065254- 05. |
|||||||||
| Per veicoli con Specchietto retr. int./est. antiabbagl. |
S430A=Sì |
|||||||||
| 01 | Specchio esterno senza vetro riscald. d. | 1 | 07/2019 | 51167401098 | Shop at ECS Tuning | |||||
| Per veicoli con Specchio esterno ribaltabile e Specchietto retr. int./est. antiabbagl. |
S313A=Non S430A=Non |
|||||||||
| 01 | Specchio esterno senza vetro riscald. d. | 1 | 07/2019 | 51167931792 | Shop at ECS Tuning | |||||
| Per veicoli con Specchio esterno ribaltabile e Specchietto retr. int./est. antiabbagl. |
S313A=Sì S430A=Sì |
|||||||||
| 01 | Specchio esterno senza vetro riscald. d. | 1 | 07/2019 | 51167931798 | Shop at ECS Tuning | |||||
| Per veicoli con Specchio esterno ribaltabile e Specchietto retr. int./est. antiabbagl. |
S313A=Non S430A=Non |
|||||||||
| 01 | Specchio esterno senza vetro riscald. d. | 1 | 07/2019 | 51167401088 | Shop at ECS Tuning | |||||
| Per veicoli con Specchietto retr. int./est. antiabbagl. e Pacchetto Excitement MINI |
S430A=Sì S4V9A=Sì |
|||||||||
| 01 | Retrovisore est. senza vetro risc. sx | 1 | 07/2019 | 51167471235 | Shop at ECS Tuning | |||||
| Per veicoli con Specchietto retr. int./est. antiabbagl. e Pacchetto Excitement MINI |
S430A=Sì S4V9A=Non |
|||||||||
| 01 | Retrovisore est. senza vetro risc. sx | 1 | 07/2019 | 51167401097 | Shop at ECS Tuning | |||||
| Per veicoli con Specchio esterno ribaltabile e Specchietto retr. int./est. antiabbagl. e Pacchetto Excitement MINI |
S313A=Non S430A=Non S4V9A=Sì |
|||||||||
| 01 | Retrovisore est. senza vetro risc. sx | 1 | 07/2019 | 51167471231 | Shop at ECS Tuning | |||||
| 01 | Retrovisore est. senza vetro risc. sx | 1 | 07/2019 | 51167931789 | Shop at ECS Tuning | |||||
| Per veicoli con Specchio esterno ribaltabile e Specchietto retr. int./est. antiabbagl. e Pacchetto Excitement MINI |
S313A=Sì S430A=Sì S4V9A=Non |
|||||||||
| 01 | Specchio esterno senza vetro riscald. d. | 1 | 07/2019 | 51167401094 | Shop at ECS Tuning | |||||
| 01 | Retrovisore est. senza vetro risc. sx | 1 | 07/2019 | 51167931803 | Shop at ECS Tuning | |||||
| Per veicoli con Specchio esterno ribaltabile e Specchietto retr. int./est. antiabbagl. e Pacchetto Excitement MINI |
S313A=Sì S430A=Non S4V9A=Sì |
|||||||||
| 01 | Retrovisore est. senza vetro risc. sx | 1 | 07/2019 | 51167471233 | Shop at ECS Tuning | |||||
| 01 | Retrovisore est. senza vetro risc. sx | 1 | 07/2019 | 51167931795 | Shop at ECS Tuning | |||||
| Per veicoli con Specchio esterno ribaltabile e Specchietto retr. int./est. antiabbagl. e Pacchetto Excitement MINI |
S313A=Non S430A=Non S4V9A=Non |
|||||||||
| 01 | Retrovisore est. senza vetro risc. sx | 1 | 07/2019 | 51167931791 | Shop at ECS Tuning | |||||
| 01 | Retrovisore est. senza vetro risc. sx | 1 | 07/2019 | 51167401087 | Shop at ECS Tuning | |||||
| Per veicoli con Specchio esterno ribaltabile e Specchietto retr. int./est. antiabbagl. e Pacchetto Excitement MINI |
S313A=Sì S430A=Non S4V9A=Non |
|||||||||
| 01 | Retrovisore est. senza vetro risc. sx | 1 | 07/2019 | 51167401093 | Shop at ECS Tuning | |||||
| 01 | Retrovisore est. senza vetro risc. sx | 1 | 07/2019 | 51167931797 | Shop at ECS Tuning | |||||
| Per veicoli con Specchio esterno ribaltabile e Specchietto retr. int./est. antiabbagl. e Pacchetto Excitement MINI |
S313A=Sì S430A=Sì S4V9A=Sì |
|||||||||
| 01 | Retrovisore est. senza vetro risc. sx | 1 | 07/2019 | 51167931801 | Shop at ECS Tuning | |||||
| 02 | Copertura specchietto mano di fondo dx | 1 | 07/2019 | 51169881534 | Shop at ECS Tuning | |||||
| Per veicoli con Pacchetto Excitement MINI |
S4V9A=Sì |
|||||||||
| 02 | Copertura specchietto mano di fondo sx | 1 | 07/2019 | 51169881537 | Shop at ECS Tuning | |||||
| Per veicoli con Pacchetto Excitement MINI |
S4V9A=Non |
|||||||||
| 02 | Copertura specchietto mano di fondo sx | 1 | 07/2019 | 51169881533 | Shop at ECS Tuning | |||||
| Per veicoli con Gusci retrovisori esterni cromati e Pacchetto Excitement MINI |
S405A=Non S4V9A=Sì |
|||||||||
| 02 | Copertura specchietto mano di fondo dx | 1 | 07/2019 | 51167401230 | Shop at ECS Tuning | |||||
| 02 | Copertura specchietto mano di fondo sx | 1 | 07/2019 | 51167471285 | Shop at ECS Tuning | |||||
| Per veicoli con Gusci retrovisori esterni cromati e Pacchetto Excitement MINI |
S405A=Non S4V9A=Non |
|||||||||
| 02 | Copertura specchietto mano di fondo sx | 1 | 07/2019 | 51167401229 | Shop at ECS Tuning | |||||
| 03 | Vite a testa cilindrica | M6X50-8.8-ZNS3 | 2 | 51169905223 | Shop at ECS Tuning | |||||
| Per veicoli con Specchio esterno ribaltabile e Specchietto retr. int./est. antiabbagl. e Regolazione elettrica sedili con memory |
S313A=Non S430A=Non S459A=Non |
|||||||||
| 04 | Motorino specchio esterno sinistra | 1 | 67137337843 | Shop at ECS Tuning | ||||||
| 04 | Motorino specchio esterno destra | 1 | 67137337844 | Shop at ECS Tuning | ||||||
| Per veicoli con Specchio esterno ribaltabile o Specchietto retr. int./est. antiabbagl. o Regolazione elettrica sedili con memory |
S313A=Sì S430A=Sì S459A=Sì |
|||||||||
| 04 | Motorino specchio est. Memory | 2 | 67137337847 | Shop at ECS Tuning | ||||||
| Per veicoli con Pacchetto Excitement MINI |
S4V9A=Sì |
|||||||||
| 05 | Modulo luce sinistra | LHD | 1 | 03/2018 | 63137425711 | Shop at ECS Tuning | ||||
| 05 | Modulo luce sinistra | LHD | 1 | 03/2018 | 63137955905 | Shop at ECS Tuning | ||||
| 06 | Supporto modulo luci sx | LHD | 1 | 51167431935 | Shop at ECS Tuning | |||||
| 07 | Vite | 1 | 51162755643 | $0.52 | Shop at ECS Tuning | |||||
| 08 | Tappo | 4 | 51167411309 | Shop at ECS Tuning | ||||||
| 09 | Kit di rip.cavo specchio retr.esterno | 1 | 61359853372 | Shop at ECS Tuning | ||||||
