schermi esterni / griglia decorativa for BMW 4 Series G82 M4 Coupé M4 (2024)

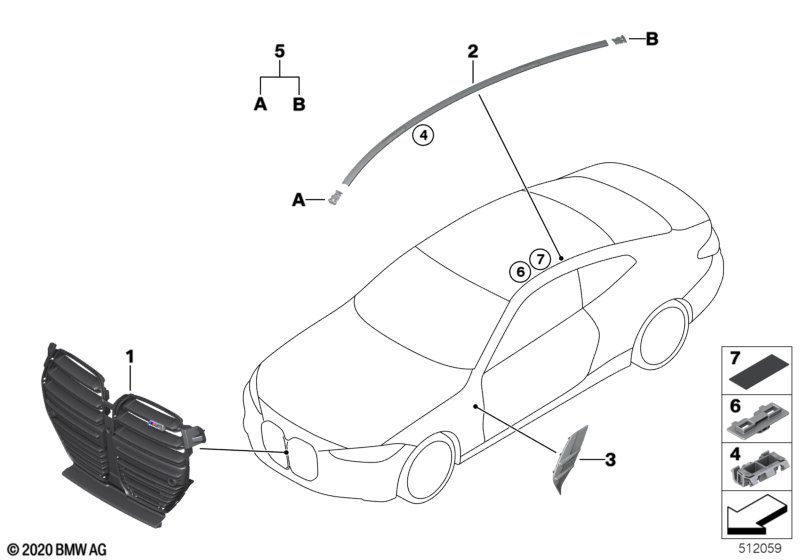

This schermi esterni / griglia decorativa technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Griglia ornamentale frontale | M / BASIS | 1 | 51138073057 | Shop at ECS Tuning | |||||
| 02 | Listello de tetto ammannito sinsitra | 1 | 51137930955 | Shop at ECS Tuning | ||||||
| 02 | Listello de tetto ammannito destra | 1 | 51137930956 | Shop at ECS Tuning | ||||||
| Per veicoli con Tetto in vetro el. |
S403A=Non |
|||||||||
| 02 | Listello de tetto sinsitra | M | 1 | 51138073063 | Shop at ECS Tuning | |||||
| 02 | Listello de tetto destra | M | 1 | 51138073064 | Shop at ECS Tuning | |||||
| 03 | Air Breather sx | M | 1 | 51138076997 | Shop at ECS Tuning | |||||
| 03 | Deod.climatizzatore dx | M | 1 | 51138076998 | Shop at ECS Tuning | |||||
| 04 | Clip modanatura tetto | 14 | 51138496668 | Shop at ECS Tuning | ||||||
| Per veicoli con Tetto in vetro el. |
S403A=Non |
|||||||||
| 04 | Clip parte superiore | CFK | 14 | 51318075020 | Shop at ECS Tuning | |||||
| 05 | Kit terminali c.strato di fondo | 1 | 51137930959 | Shop at ECS Tuning | ||||||
| Per veicoli con Tetto in vetro el. |
S403A=Non |
|||||||||
| 06 | Clip, parte inferior | CFK | 14 | 51138086135 | Shop at ECS Tuning | |||||
| solo in collegamento con | ||||||||||
| -- | nastro adesivo | 1000MM | 14 | 51138086328 | Shop at ECS Tuning | |||||
| 07 | nastro adesivo | 1000MM | 14 | 51138086328 | Shop at ECS Tuning | |||||
