Sedile post., mascherine schien. for BMW MINI F56 LCI One (2024)

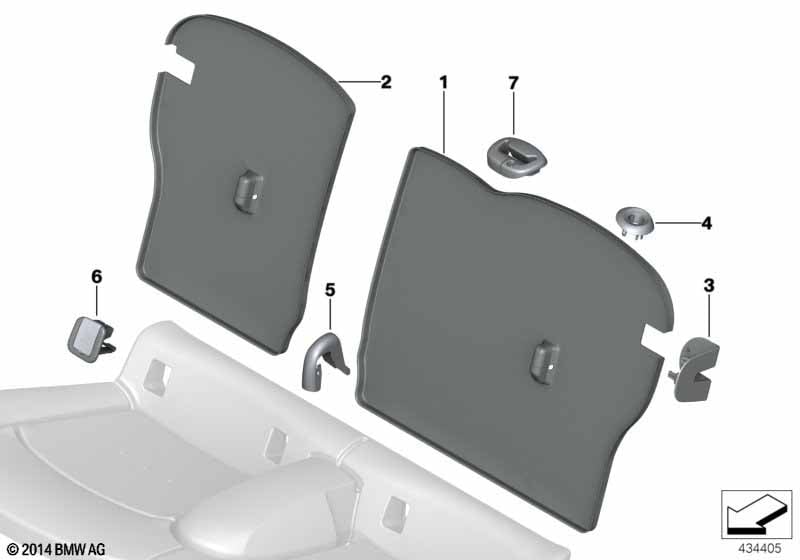

This Sedile post., mascherine schien. technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rivestimiento braciolo sinistra | 1 | 52207299509 | Shop at ECS Tuning | ||||||
| 02 | Rivestimiento braciolo destra | 1 | 52207299510 | Shop at ECS Tuning | ||||||
| 03 | Mostrina serratura | 2 | 52207299521 | Shop at ECS Tuning | ||||||
| Per veicoli con Tessuto Firework/Carbon Black o Tessuto Double Stripe/Carbon Black o Dinamica/tessuto Carbon Black o Dinamica/pelle Carbon Black o Similpelle "Leatherette"/carbon-black o Tess/Leatherette Bl. Pearl/carbon-black o Comb.tessuto/pelle Bl.P./light chequered o Tessuto blu pearl/light grigio o Pelle Cross Punch / Carbon Black o Pelle Chester/grigio Satellite o Pelle Chester/malt-brown o MINI Yours pelle Lounge/carbon-black o MINI LOUNGE 60 Years dark maroon |
BGE1=Sì BZE1=Sì DAE1=Sì GSE1=Sì K9E1=Sì KDE1=Sì KDG2=Sì KDT8=Sì NEE1=Sì NYGK=Sì NYMJ=Sì TYE1=Sì TYIH=Sì |
|||||||||
| 04 | Mascherina azionamento sinistra | 1 | 52207340751 | Shop at ECS Tuning | ||||||
| 04 | Mascherina azionamento destra | 1 | 52207340752 | Shop at ECS Tuning | ||||||
| 05 | Mascherina copertura cuscinetto centrale | 1 | 52207348021 | Shop at ECS Tuning | ||||||
| Per veicoli con Paquet supplem. specifico EU |
S230A=Non |
|||||||||
| 06 | Mascherina isofix sinistra | 2 | 52207382949 | Shop at ECS Tuning | ||||||
| 06 | Mascherina isofix destra | 2 | 52207382950 | Shop at ECS Tuning | ||||||
| Per veicoli con Paquet supplem. specifico EU |
S230A=Sì |
|||||||||
| 06 | Mascherina isofix sinistra | 2 | 52209460563 | NoS | Shop at ECS Tuning | |||||
| 06 | Mascherina isofix destra | 2 | 52209460564 | NoS | Shop at ECS Tuning | |||||
Note
- NoS = No Stock (Componente non pres. nel magazzino cent.)
