Sedile ant.imb.e rivest.sedile a pipa for BMW MINI F56 LCI One (2024)

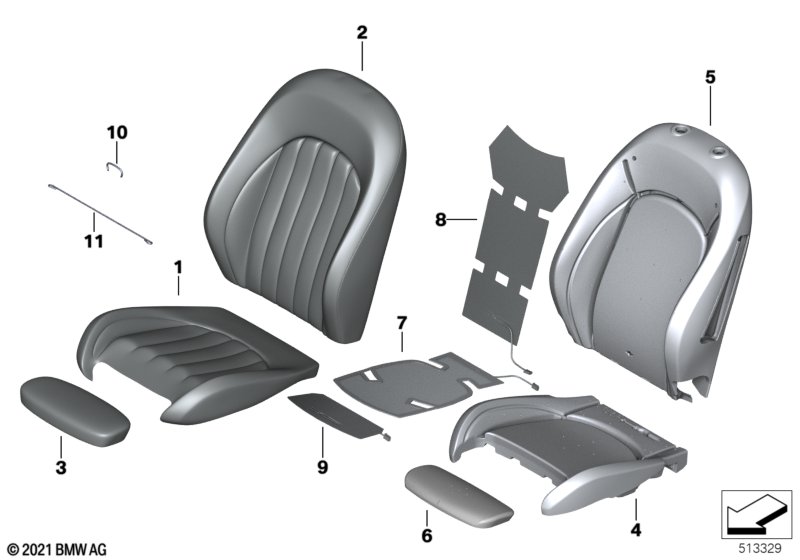

This Sedile ant.imb.e rivest.sedile a pipa technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Per veicoli con MINI Yours pelle Lounge/carbon-black |
TYE1=Sì |
|||||||||
| 01 | Rivestimento sedile sport cuoio | CARBON BLACK | 2 | 52107414575 | Shop at ECS Tuning | |||||
| Per veicoli con Pelle Chester/grigio Satellite |
NYGK=Sì |
|||||||||
| 01 | Rivestimento sedile sport cuoio | GRAU | 2 | 52109471419 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Pelle Chester/malt-brown |
NYMJ=Sì |
|||||||||
| 01 | Rivestimento sedile sport cuoio | MALT BROWN | 2 | 52107939852 | Shop at ECS Tuning | |||||
| Per veicoli con MINI Yours pelle Lounge/carbon-black |
TYE1=Sì |
|||||||||
| 02 | Rivestimento schienale sport cuoio sin. | CARBON BLACK | 1 | 52107414577 | Shop at ECS Tuning | |||||
| 02 | Rivestimento schienale sport cuoio des. | CARBON BLACK | 1 | 52107414578 | Shop at ECS Tuning | |||||
| Per veicoli con Pelle Chester/grigio Satellite |
NYGK=Sì |
|||||||||
| 02 | Rivestimen.bracci.cuoio sinistra | SATELLITE GRAU | 1 | 52109458795 | NoS | Shop at ECS Tuning | ||||
| 02 | Rivestimen.bracci.cuoio destra | SATELLITE GRAU | 1 | 52109458796 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Pelle Chester/malt-brown |
NYMJ=Sì |
|||||||||
| 02 | Rivestimento schienale sport cuoio des. | MALT BROWN | 1 | 52107939840 | NoS | Shop at ECS Tuning | ||||
| 02 | Rivestimento schienale sport cuoio sin. | MALT BROWN | 1 | 52107941123 | Shop at ECS Tuning | |||||
| Per veicoli con MINI Yours pelle Lounge/carbon-black |
TYE1=Sì |
|||||||||
| 03 | Rivestimento d.poggiacosce | CARBON BLACK | 2 | 52107414583 | Shop at ECS Tuning | |||||
| Per veicoli con Pelle Chester/grigio Satellite |
NYGK=Sì |
|||||||||
| 03 | Rivestimento poggiagambe pelle | SATELIT GRAU | 2 | 52109471379 | NoS | Shop at ECS Tuning | ||||
| Per veicoli con Pelle Chester/malt-brown |
NYMJ=Sì |
|||||||||
| 03 | Rivestimento poggiagambe pelle | MALT BROWN | 2 | 52107940916 | Shop at ECS Tuning | |||||
| con riscaldamento sedile Anche per veicoli senza riscaldamento sedile |
||||||||||
| 04 | Parte in mater.espanso sedile bombato | 2 | 52107389106 | Shop at ECS Tuning | ||||||
| 05 | Parte mat.espanso schien.sed.bombato sx | 1 | 52107389131 | Shop at ECS Tuning | ||||||
| 05 | Parte mat.espanso schien.sed.bombato dx | 1 | 52107389132 | Shop at ECS Tuning | ||||||
| Per veicoli con Sedile sportivo e Pelle Chester o Cuoio "Lounge" o MINI Yours pelle Lounge |
S481A=Sì NY=Sì T9=Sì TY=Sì |
|||||||||
| 06 | Parte in materiale espanso poggiagambe | 2 | 52107389121 | Shop at ECS Tuning | ||||||
| 10 | Clip | 1,6X20X10,1 | 20 | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Staffa metallica | L=1800MM | 1 | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Note
- NoS = No Stock (Componente non pres. nel magazzino cent.)
