Relais for BMW 5 Series E12 528

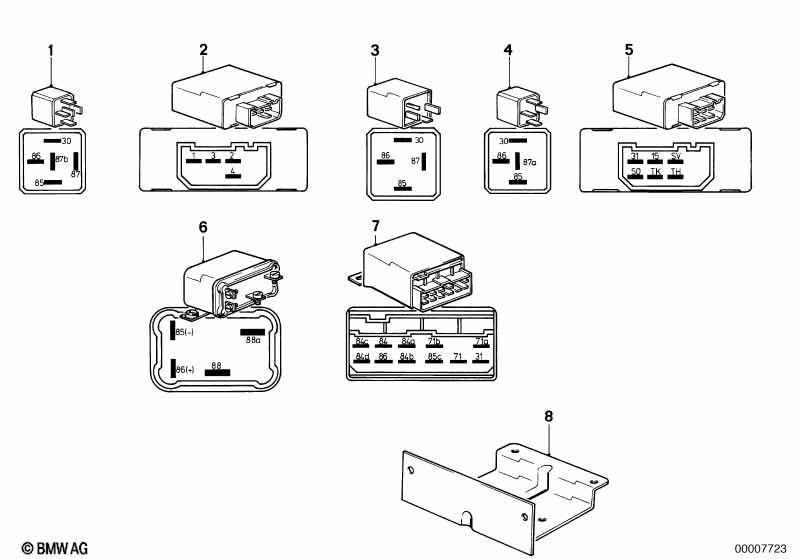

This Relais technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Per veicoli con Svezia versioni |
=Sì |
|||||||||
| 02 | Relais interrutt.comand.I.funz.d.regine | 1 | 61311361488 | TERMINATO | Shop at ECS Tuning | |||||
| Per veicoli con Regolazione di livello |
=Sì |
|||||||||
| 03 | Relais | 1 | 61311154784 | TERMINATO | Shop at ECS Tuning | |||||
Note
- TERMINATO = Il ricambio è fuori produzione.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Relais?
- This technical diagram illustrates the Relais within the Impianto elettrico della vettura group for the 5 Series E12 528. It provides a detailed exploded view of the components, identifying key parts such as the Relais interrutt.comand.I.funz.d.regine (Part #61311361488).
- Which models use the hardware listed in this Relais?
- The hardware and components featured in the Relais are specific to the 5 Series E12 528. These technical specifications ensure that parts like the Relais interrutt.comand.I.funz.d.regine (61311361488) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relais assembly?
- Each item in the Relais corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Relais interrutt.comand.I.funz.d.regine by locating its position on the schematic, which then links to the official BMW part number 61311361488 for the Impianto elettrico della vettura section.
