Corr.di cavo/pezzi montab.cappottae.M. for BMW 3 Series E30 320i

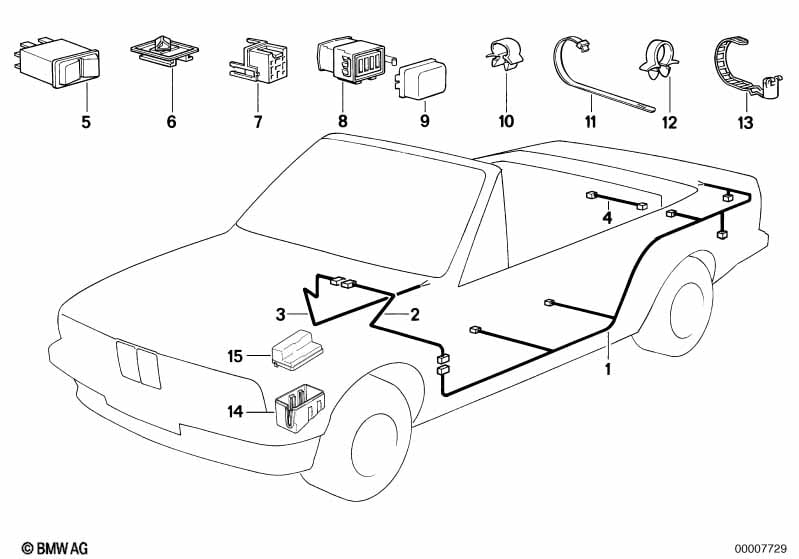

This Corr.di cavo/pezzi montab.cappottae.M. technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Per veicoli con Capote EM |
=Sì |
|||||||||
| 01 | Corr.di cavo alimentaz.tensione | 1 | 61121394322 | $37.71 | TERMINATO | Shop at ECS Tuning | ||||
| 02 | Fascio di cavi cappotta | 1 | 61121394264 | $144.48 | TERMINATO | Shop at ECS Tuning | ||||
| 05 | Interruttore cappotta | 1 | 61312230532 | $85.50 | Shop at ECS Tuning | |||||
| 06 | Supporto collegamento a spina grigio | 4 | 61131382541 | $1.03 | Shop at ECS Tuning | |||||
| 07 | Relais base schwarz | 3 | 61131389114 | $5.32 | Shop at ECS Tuning | |||||
| 08 | Portafusibili | 1 | 61131382196 | $14.38 | Shop at ECS Tuning | |||||
| 09 | Coperchio portafusibili | 1 | 61131382197 | $7.10 | Shop at ECS Tuning | |||||
| 10 | Sostengo d condotto | D=10,8MM | 4 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 11 | Legacavi | L=200MM/B=3,6MM | 2 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 12 | Ritegno di cavo | D=22MM | 1 | 61131369503 | $0.55 | Shop at ECS Tuning | ||||
| 13 | Legacavi | L=119MM | 4 | 61138357028 | Shop at ECS Tuning | |||||
Note
- TERMINATO = Il ricambio è fuori produzione.
