Relais for BMW 2.5CS-3.0CSL 3.0CSiL

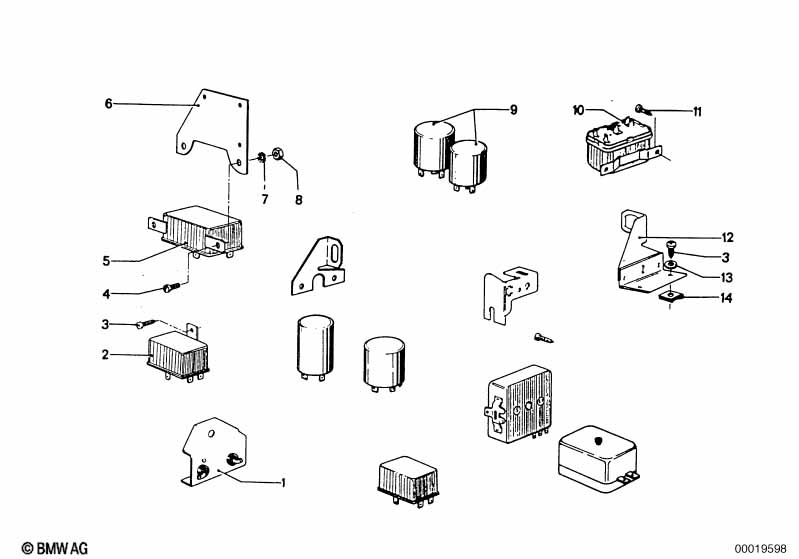

This Relais technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSiL. It includes part names, part numbers and all associated mounting hardware.
| No. | Descrizione | Supplemento | Qtà | Da | Fino a | Codice Ricambio | Prezzo | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Vite | 2 | 07119904170 | $0.17 | Shop at ECS Tuning | |||||
| 04 | Vite testa cil. | M5X10 | 2 | 04/1971 | 11/1975 | 07119907639 | $0.40 | Shop at ECS Tuning | ||
| 05 | Relais | 1 | 04/1971 | 11/1975 | 61311352232 | TERMINATO | Shop at ECS Tuning | |||
| 06 | Supporto | 1 | 04/1971 | 11/1975 | 61311355261 | TERMINATO | Shop at ECS Tuning | |||
| 07 | Rosetta dentata | A5,1 | 2 | 04/1971 | 11/1975 | 07119936107 | $0.18 | Shop at ECS Tuning | ||
| 08 | Dado esagonale | M5-8-ZNNIV SI | 2 | 04/1971 | 11/1975 | 07119905729 | Shop at ECS Tuning | |||
| 09 | Relais contatto di lavoro verde bianco | 2 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 11 | Vite per lamiera | ST4,8X9,5-C-H-Z | 2 | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
| 13 | Rondella | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 13 | Piastra d'appoggio | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 14 | Dado per lamiera | ST4,2-3-ZNS3 | 1 | 07129904221 | $0.25 | Shop at ECS Tuning |
Note
- TERMINATO = Il ricambio è fuori produzione.
